Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Explosion-proof Lights Series

Explosion-proof Plug, Socket dCTH202

Main Specification: Name Explosion-Proof Socket Explosion-proof Plug Code 5516/L,5516/R,5516/D ...

ISO9001 Supplier Class Certificate Export Supply

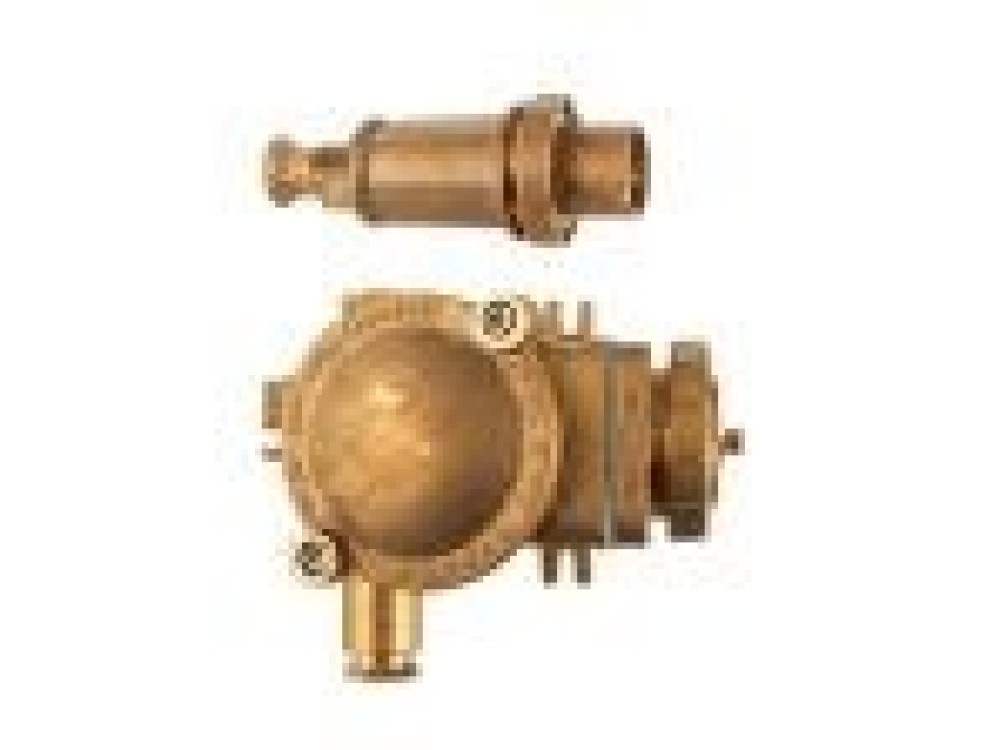

Explosion-proof Plug, Socket dCTH202

Key Highlights

Category
Marine Explosion-proof Lights Series
Material
Brass
Weight / Size
Name Explosion-Proof Socket Explosion-proof Plug Code 5516/L,5516/R,5516...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Explosion-proof Lights Series
Model / SKU
Explosion-proof-Plug-Socket-dCTH202
Material
Brass
Weight / Size
Name Explosion-Proof Socket Explosion-proof Plug Code 5516/L,5516/R,5516/D 14105/2 Type DCZH202-1,DCZH202-2 DCZH202-3 Product Form O-,-O,-O- Voltage 220V/16A 250A/16A Explosion proof Mark Exe II C T6 Exe II T6 Protection Class IP56 Material Brass Cable Diameter Dia10-12.5mm Weight 2.6kg 1.25kg
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Main Specification:

Name Explosion-Proof Socket Explosion-proof Plug
Code 5516/L,5516/R,5516/D 14105/2
Type DCZH202-1,DCZH202-2 DCZH202-3
Product Form O-,-O,-O-
Voltage 220V/16A 250A/16A
Explosion proof Mark Exe II C T6 Exe II T6
Protection Class IP56
Material Brass
Cable Diameter Dia10-12.5mm
Weight 2.6kg 1.25kg
