Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Rudder

Fishtail rudder

1.High lift coefficient,reduced turning diameter of vessel. 2.Increased steering quality of vessel. 3.Improve the navigation stability of vessel effectively. 4.Reduced rush-forward distance when brak...

ISO9001 Supplier Class Certificate Export Supply

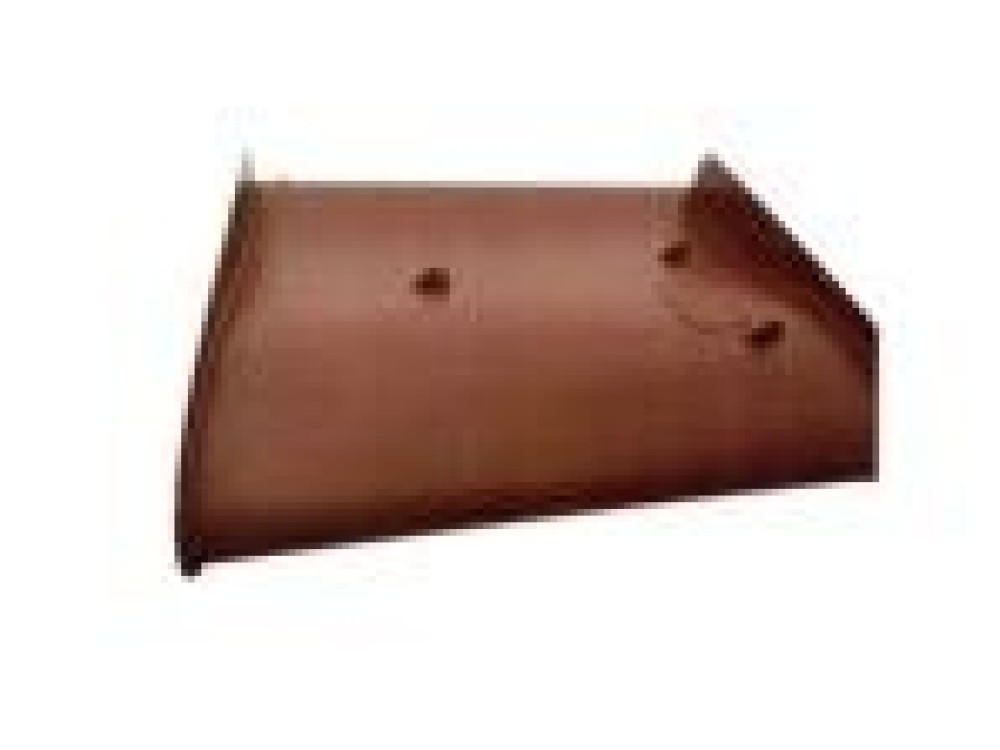

Fishtail rudder

Key Highlights

Category
Marine Rudder
Standard
EN
Material
7.Rotation axis bush of non-metal material with water lubrication,no pol...
Certificate
ABS,BV,DNV,LR,GL,CCS etc.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Rudder
Model / SKU
Fishtail-rudder
Standard
EN
Material
7.Rotation axis bush of non-metal material with water lubrication,no pollution.
Surface
6.Reduce the ambient flow loss of rudder surface effectively.
Certificate
ABS,BV,DNV,LR,GL,CCS etc.
Warranty
12 Months unless specified otherwise
Origin
China

China Fishtail rudder:

1.High lift coefficient,reduced turning diameter of vessel.

2.Increased steering quality of vessel.

3.Improve the navigation stability of vessel effectively.

4.Reduced rush-forward distance when braking.

5.Extended navigable zone and increased economic benefit of vessel.

6.Reduce the ambient flow loss of rudder surface effectively.

7.Rotation axis bush of non-metal material with water lubrication,no pollution.

Applicable vessels:

Various vessels with some certain requirements for ship manoeuverability,such as the oil tanker Etc.
