Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Hanger And Elastic Support

Fixed Suspended Hanger

The elastic elements are made by special type rubber, it has fine vibration resistance and impact resistance. Advantage: High temperature, low temperature resistance, oil resistance and aging resistance. The support ad...

ISO9001 Supplier Class Certificate Export Supply

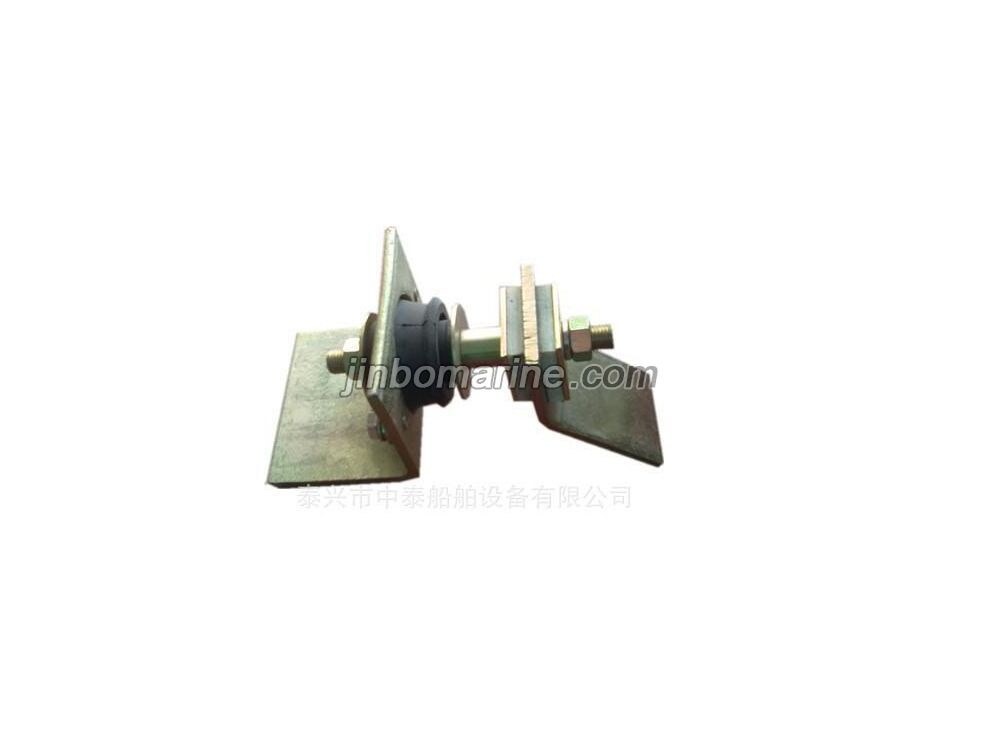

Fixed Suspended Hanger

Key Highlights

Category
Hanger And Elastic Support
Standard
EN
Weight / Size
Dimension Fixed Suspended Hanger Main Specifications Model Size Static L...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Hanger And Elastic Support
Model / SKU
Fixed-Suspended-Hanger
Standard
EN
Weight / Size
Dimension Fixed Suspended Hanger Main Specifications Model Size Static Load Workload A(mm) B(mm) C(mm) D(mm) kgf kgf VOP-021 230 80 45 110 600 200 VOP-025 255 100 60 120 700 230 VOP-026 280 100 55 130 800 270 VOP-027 310 125 75 130 1000 350 TS-444-3 320 125 70 120 1000 350 TS-472-3 360 160 90 160 2000 700
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Fixed Suspended Hanger:

The elastic elements are made by special type rubber, it has fine vibration resistance and impact resistance.
Advantage: High temperature, low temperature resistance, oil resistance and aging resistance.
The support adopts the insulating cushion so it can receive high load and the higher temperature.
Applicable range: suitable for horizontal or vertical exhaust pipe.

Dimension

Fixed Suspended Hanger Main Specifications

Model Size Static Load Workload
A(mm) B(mm) C(mm) D(mm) kgf kgf
VOP-021 230 80 45 110 600 200
VOP-025 255 100 60 120 700 230
VOP-026 280 100 55 130 800 270
VOP-027 310 125 75 130 1000 350
TS-444-3 320 125 70 120 1000 350
TS-472-3 360 160 90 160 2000 700
