Dredging Rubber Hose

Floating Discharge Hose

Floating discharge hose General description Outer cover with excellent abrasion resistance and UV protection. Wearing colored indicator layer. Single foam floatation casing, preventi...

ISO9001 Supplier Class Certificate Export Supply
Floating Discharge Hose

Key Highlights

Category
Dredging Rubber Hose
Standard
DIN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Dredging Rubber Hose
Model / SKU
Floating-Discharge-Hose
Standard
DIN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Contents
  1. Floating discharge hose
  2. General description
  3. Technical parameter

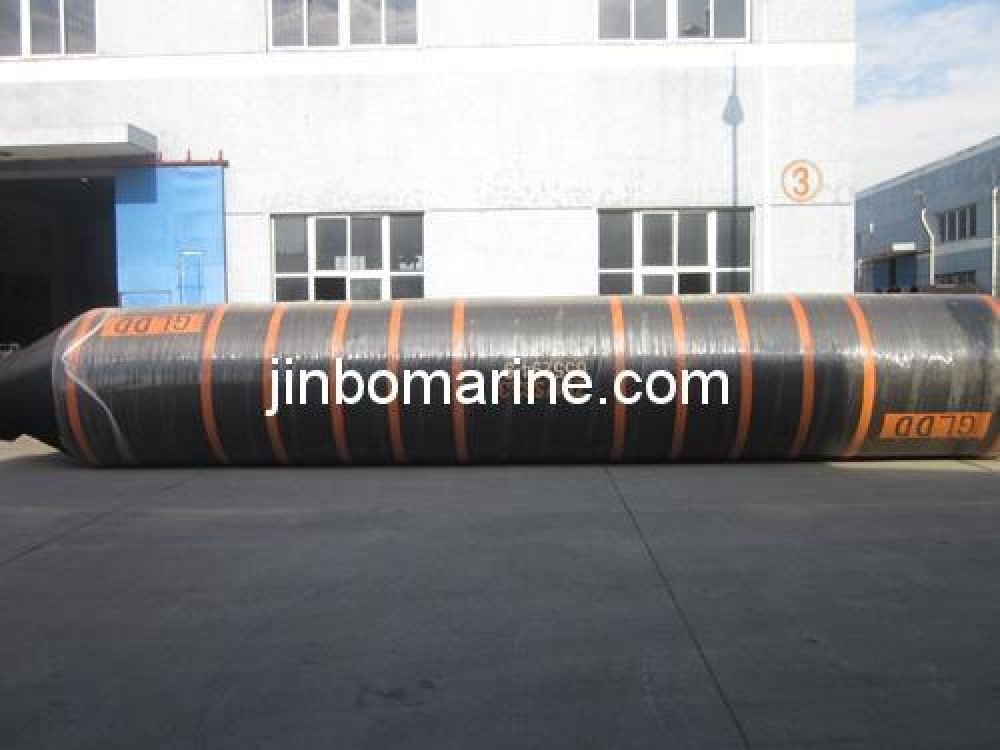

Floating discharge hose

General description

Outer cover with excellent abrasion resistance and UV protection.

Wearing colored indicator layer.

Single foam floatation casing, preventing water absorption. The hose emergence above water is not less than 20% of the total volume.

High quality, wear resistant rubber.

Flange design according to customers’ request.

Bending angle: In working condition, the bending angle is from 0 to 45 degree.

Other technical parameter can be made according to the customers’ requirement.

Technical parameter

Inner diameter(mm)

500

600

700

800

900

1000

1100

Working pressure(Mpa)

1.2

1.5

1.5-2.5

1.5-2.5

1.5-2.5

1.5-2.5

2.5
