Good flexibility and low temperature, ozone and ethane resistance.
Hose Lining: NBR Synthetic Material
Reinforcement Layer: High tensile texitle with helix stainless steel helix
Cover Rubber Layer: CR Synthetic Low Temperature Resistance Material
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Oil Hose

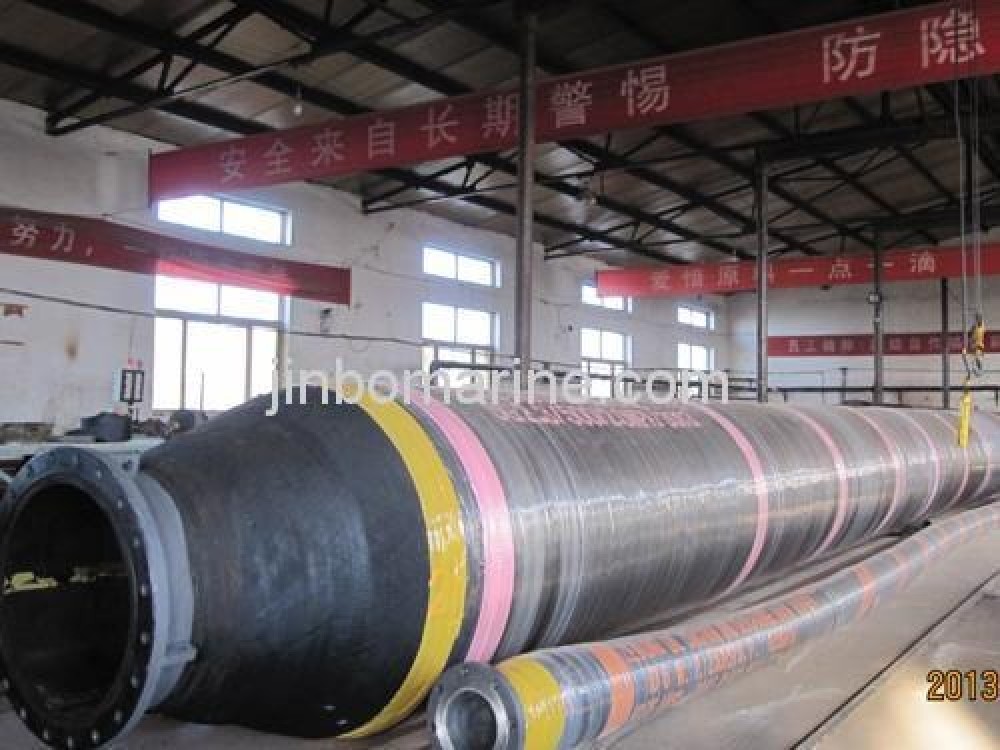

Floating Oil Hose
Good flexibility and low temperature, ozone and ethane resistance. Hose Lining: NBR Synthetic Material Reinforcement Layer: High tensile texitle with helix stainless steel helix Cover Rubber Laye...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Oil Hose
Standard
DIN
Material
NR, SBR, BR
Weight / Size
CR Synthetic Low Temperature Resistance Material Floating Oil Hose Speci...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Oil Hose
Model / SKU
Floating-Oil-Hose
Standard
DIN
Material
NR, SBR, BR
Weight / Size
CR Synthetic Low Temperature Resistance Material Floating Oil Hose Specification Type Dimension Working pressure (Mpa) Burst pressure (Mpa) ID(mm) OD(mm) Length(m) Bending Radium(m) Floating Oil Hose 200 380 9.15/10.67 1.5 15bar 75bar 250 460 9.15/10.67 1.85 300 530 9.15/10.67 2.5 400 655 9.15/10.67 3.1 500 785 9.15/10.67 3.7 600 920 9.15/10.67 4.6 Submarine Oil Hose Specification Type Dimension Working pressure (Mpa) Burst pressure (Mpa) ID(mm) OD(mm) Length(m) Bending Radium(m) Submarine Oil Hose 150 200 9.15/10.67 0.9 15bar 75bar 200 255 9.15/10.67 1.2 250 310 9.15/10.67 1.5 300 360 9.15/10.67 1.85 400 470 9.15/10.67 2.5 500 582 9.15/10.67 3.1 600 694 9.15/10.67 3.7
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China Floating Oil Hose:
Floating Oil Hose Specification
| Type | Dimension | Working pressure (Mpa) | Burst pressure (Mpa) | |||
| ID(mm) | OD(mm) | Length(m) | Bending Radium(m) | |||
| Floating Oil Hose | 200 | 380 | 9.15/10.67 | 1.5 | 15bar | 75bar |
| 250 | 460 | 9.15/10.67 | 1.85 | |||
| 300 | 530 | 9.15/10.67 | 2.5 | |||
| 400 | 655 | 9.15/10.67 | 3.1 | |||
| 500 | 785 | 9.15/10.67 | 3.7 | |||
| 600 | 920 | 9.15/10.67 | 4.6 | |||
Submarine Oil Hose Specification
| Type | Dimension | Working pressure (Mpa) | Burst pressure (Mpa) | |||
| ID(mm) | OD(mm) | Length(m) | Bending Radium(m) | |||
| Submarine Oil Hose | 150 | 200 | 9.15/10.67 | 0.9 | 15bar | 75bar |
| 200 | 255 | 9.15/10.67 | 1.2 | |||
| 250 | 310 | 9.15/10.67 | 1.5 | |||
| 300 | 360 | 9.15/10.67 | 1.85 | |||
| 400 | 470 | 9.15/10.67 | 2.5 | |||
| 500 | 582 | 9.15/10.67 | 3.1 | |||
| 600 | 694 | 9.15/10.67 | 3.7 | |||
