The parameter of chain in the table is in accordance with JB/T8108.1-1999Grade(8)
The terminal uses the chain link with the shackle. Is advantageous for the customer to combine at will.
Terminal may be hook , link and shackle.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Chain Sling

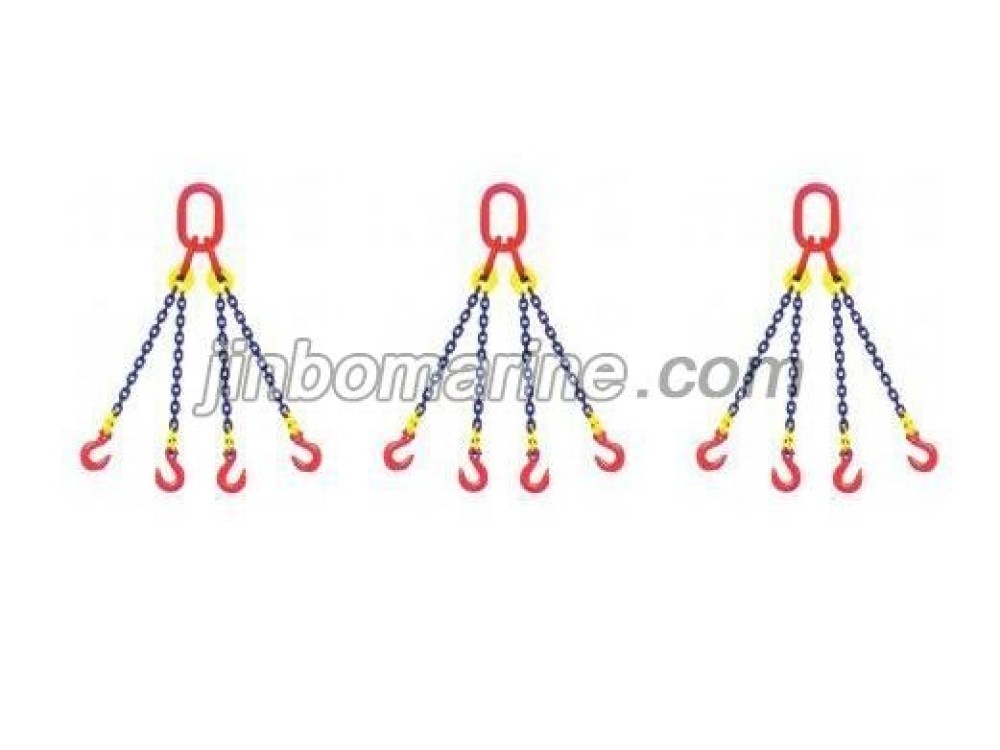

Four Legs Chain Sling
Description The parameter of chain in the table is in accordance with JB/T8108.1-1999Grade(8) The terminal uses the chain link with the shackle. Is advantageous for the customer to combine at will. ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Chain Sling
Material
High Quality Alloy Steel
Weight / Size
Technical Data Model Diamerter of the chain （mm） WLL（t） Master link Weig...
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Chain Sling
Model / SKU
Four-Legs-Chain-Sling
Material
High Quality Alloy Steel
Weight / Size
Technical Data Model Diamerter of the chain （mm） WLL（t） Master link Weight/m （kg/m） Chain weight （kg） α≤45° 45°<α≤45° A×B×d（mm） YLS4-6 6 2.1 1.5 80×150×20 7.33 0.79 YLS4-8 8 3.1 2.2 90×160×24 12.21 1.38 YLS4-10 10 5.2 3.7 100×190×28 23.42 2.2 YLS4-12 12 7.3 5.2 110×200×28 33.77 3.1 YLS4-14 14 10.5 7.5 120×230×34 40.54 4.13 YLS4-16 16 12.6 9 135×250×38 53.51 5.63 YLS4-18 18 16.8 12 140×270×42 64.47 6.85 YLS4-20 20 21 15 160×310×46 79.88 8.6 YLS4-22 22 25.2 18 180×330×52 150.42 10.2 YLS4-24 24 29.4 21 180×330×52 155.75 12.78 YLS4-26 26 35.7 25.5 180×330×56 253.27 14.87 YLS4-30 30 46.2 33 210×410×62 268.64 19.6
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China
Description
Technical Data
| Model | Diamerter of the chain （mm） | WLL（t） | Master link | Weight/m （kg/m） | Chain weight （kg） | |
| α≤45° | 45°<α≤45° | A×B×d（mm） | ||||
| YLS4-6 | 6 | 2.1 | 1.5 | 80×150×20 | 7.33 | 0.79 |
| YLS4-8 | 8 | 3.1 | 2.2 | 90×160×24 | 12.21 | 1.38 |
| YLS4-10 | 10 | 5.2 | 3.7 | 100×190×28 | 23.42 | 2.2 |
| YLS4-12 | 12 | 7.3 | 5.2 | 110×200×28 | 33.77 | 3.1 |
| YLS4-14 | 14 | 10.5 | 7.5 | 120×230×34 | 40.54 | 4.13 |
| YLS4-16 | 16 | 12.6 | 9 | 135×250×38 | 53.51 | 5.63 |
| YLS4-18 | 18 | 16.8 | 12 | 140×270×42 | 64.47 | 6.85 |
| YLS4-20 | 20 | 21 | 15 | 160×310×46 | 79.88 | 8.6 |
| YLS4-22 | 22 | 25.2 | 18 | 180×330×52 | 150.42 | 10.2 |
| YLS4-24 | 24 | 29.4 | 21 | 180×330×52 | 155.75 | 12.78 |
| YLS4-26 | 26 | 35.7 | 25.5 | 180×330×56 | 253.27 | 14.87 |
| YLS4-30 | 30 | 46.2 | 33 | 210×410×62 | 268.64 | 19.6 |
