Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Shipbuilding Steel

Four Roller Plate Rolling Machine For Shipayd

Four Roller Plate Rolling Machine The machine widely used in petroleum, chemical industry, cement, boiler, shipbuilding, aviation, water conservancy,...

ISO9001 Supplier Class Certificate Export Supply

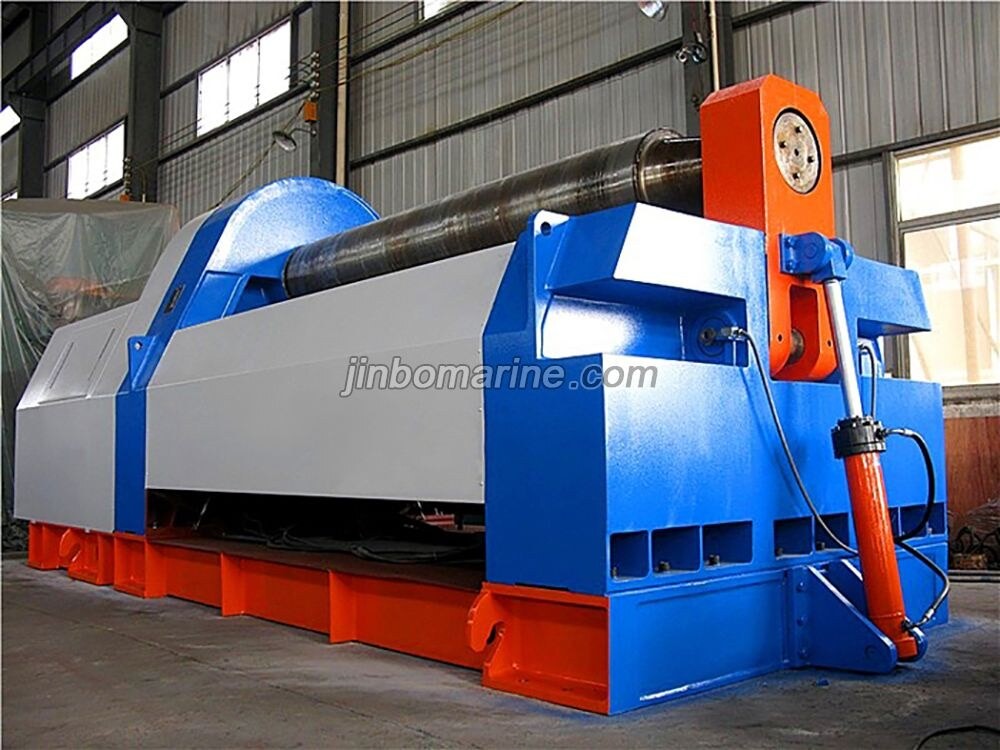

Four Roller Plate Rolling Machine For Shipayd

Key Highlights

Category
Shipbuilding Steel
Standard
DIN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Shipbuilding Steel
Model / SKU
Four-Roller-Plate-Rolling-Machine-For-Shipayd
Standard
DIN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Four Roller Plate Rolling Machine

The machine widely used in petroleum, chemical industry, cement, boiler, shipbuilding, aviation, water conservancy, power transmission towers and other machinery and equipment. Its working principle is rotating bending deformation. For the upper roller can be moved no matter up and down, but also horizontally, so no need additional press or equipment, can realize pretending, bending, as well as correction of the work piece.

Four Roller Plate Rolling Machine Technical Specifications

Model Max Max Yielding Rolling Min. Top roll Lower roll Side rolls Speed Main
thickness width strength speed diameter diameter diameter diameter m/min power
mm mm Mpa m/min mm mm mm mm kw
W12－25*2000 25 2000 245 4 800 350 320 240 80 22
W12－20*2500 20 2500 245 4 640 350 320 240 80 30
W12－30*2000 30 2000 245 4 1000 400 360 240 80 37
W12－25*2500 25 2500 245 4 800 400 360 240 80 37
W12－35*2000 35 2000 245 4 1200 420 380 210 80 37
W12－30*2500 30 2500 245 4 1000 400 360 230 80 37
W12－40*2000 40 2000 245 4 1400 480 400 420 80 45
W12－45*2000 45 2000 245 4 1600 500 450 280 80 45
W12－35*2500 35 2500 245 4 1200 480 400 420 80 45
W12－40*2500 40 2500 245 4 1400 500 450 380 80 45
W12－45*2500 45 2500 245 4 1600 530 480 450 80 63
W12－35*3000 35 3000 245 4 1200 500 450 380 80 45
W12－45*3000 45 3000 245 4 1600 560 500 450 80 63
W12－55*2500 55 2500 245 4 2000 600 550 500 78 75
W12－55*3000 55 3000 245 4 2000 620 560 500 78 75
W12－65*3000 65 3000 245 4 2400 670 600 550 78 110
