| Model number | Nominal pressure(PN) | Overall dimensions | Hand wheel | Flange size | |||||
| L | H | BSP | D0 | D | C | N-ΦZ | Flange standard | ||
| A10040 | PN10 | 160 | 55 | 1 1/2"(BSP) | Φ100 | Φ125 | Φ93 | 6-Φ15 | GB569 |
| B10040 | 68 | 210 | |||||||
| A10050 | 180 | 170 | 2"(BSP) | Φ140 | Φ135 | Φ103 | |||
| B10050 | 80 | 230 | |||||||
| A10065 | 205 | 185 | 2 1/2"(BSP) | Φ160 | Φ155 | Φ123 | |||
| B10065 | 95 | 245 | |||||||
| AS10040 | PN10 | 160 | 155 | 1 1/2"(BSP) | Φ100 | Φ150 | Φ110 | 4-Φ18 | GB2501 |
| BS10040 | 68 | 210 | |||||||
| AS10050 | 180 | 170 | 2"(BSP) | Φ140 | Φ165 | Φ125 | |||
| BS10050 | 80 | 230 | |||||||
| AS10065 | 205 | 185 | 2 1/2"(BSP) | Φ160 | Φ185 | Φ145 | |||
| BS10065 | 95 | 245 | |||||||
| B30040 | PN30 | 68 | 245 | 1 1/2"(BSP) | Φ100 | Φ125 | Φ93 | 6-Φ15 | GB569 |
| B30050 | 80 | 270 | 2"(BSP) | Φ140 | Φ135 | Φ103 | |||
| B30065 | 95 | 290 | 2 1/2"(BSP) | Φ160 | Φ170 | Φ132 | 8-Φ18 | ||
| B30080 | 100 | 395 | 3"(BSP) | Φ200 | Φ185 | Φ147 | |||
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Fire Hydrant

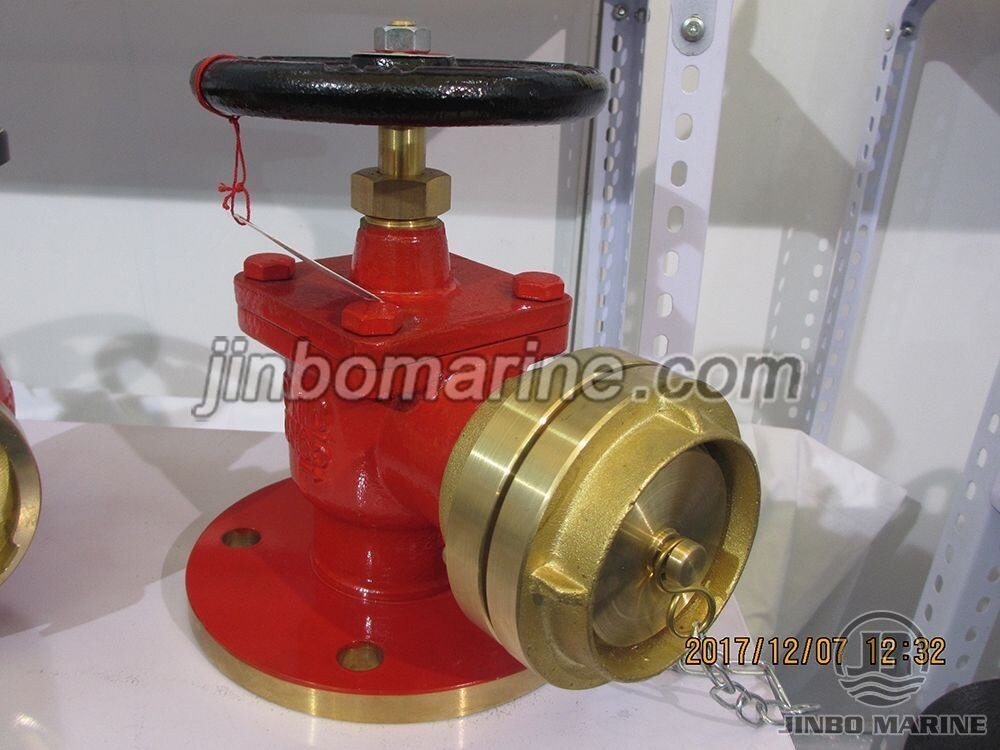

GB2032 Flanged Fire Hydrant
GB2032 Flanged Fire Hydrant Model number Nominal pressure(PN) Overall dimensions Hand wheel Flange size L...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Fire Hydrant
Standard
GB
Weight / Size
GB2032 Flanged Fire Hydrant Model number Nominal pressure(PN) Overall di...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Fire Hydrant
Model / SKU
GB2032-Flanged-Fire-Hydrant
Standard
GB
Weight / Size
GB2032 Flanged Fire Hydrant Model number Nominal pressure(PN) Overall dimensions Hand wheel Flange size L H BSP D0 D C N-ΦZ Flange standard A10040 PN10 160 55 1 1/2"(BSP) Φ100 Φ125 Φ93 6-Φ15 GB569 B10040 68 210 A10050 180 170 2"(BSP) Φ140 Φ135 Φ103 B10050 80 230 A10065 205 185 2 1/2"(BSP) Φ160 Φ155 Φ123 B10065 95 245 AS10040 PN10 160 155 1 1/2"(BSP) Φ100 Φ150 Φ110 4-Φ18 GB2501 BS10040 68 210 AS10050 180 170 2"(BSP) Φ140 Φ165 Φ125 BS10050 80 230 AS10065 205 185 2 1/2"(BSP) Φ160 Φ185 Φ145 BS10065 95 245 B30040 PN30 68 245 1 1/2"(BSP) Φ100 Φ125 Φ93 6-Φ15 GB569 B30050 80 270 2"(BSP) Φ140 Φ135 Φ103 B30065 95 290 2 1/2"(BSP) Φ160 Φ170 Φ132 8-Φ18 B30080 100 395 3"(BSP) Φ200 Φ185 Φ147
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
