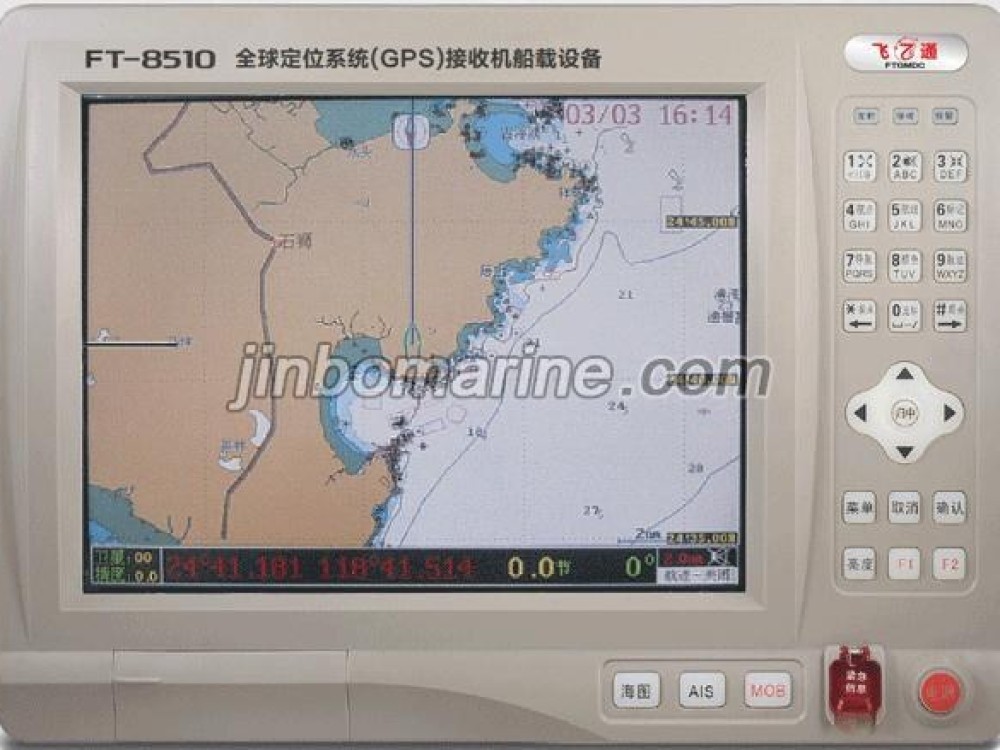

GPS (10.0-inch)

GPS (10.0-inch) (1).Main function 1.10.0-inch color LCD screen, resolution 640 * 480 display. 2.Provided coastline of country (ECDIS), Geographic Names ,mark, Information display 3.Provided waypoint...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Marine Communication And Navigation Equipment
Standard
EN
Weight / Size
-15 ℃ - +55 ℃ 10.Dimensions:
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

GPS (10.0-inch)

(1).Main function

1.10.0-inch color LCD screen, resolution 640 * 480 display.
2.Provided coastline of country (ECDIS), Geographic Names ,mark, Information display
3.Provided waypoints, routes, track ,navigation plan function
4.Electronic compass, cursor, data navigation features
5.Provided arrival, course deviated , shift, anchor, alarm set function
6.Available to store 10,000 waypoints 10,000 mark, 200,000 track point,200 routes, navigation function
7.Provided color selection of nautical charts
8.Provided AIS data information display interface (Option)

(2).Technical Specifications

1.Receiver frequency : L1 signal 1575.42MHz
2.Acquisition / Capture sensitivity: ≤-136dBm
3.Initial position-fix : ≤ 2min : ≤ 2min
4.Positioning accuracy: ≤ 15m
5.

Positioning angle of elevation :

＞ 5 °
6.Display Screen: 10.0-inch color LCD screen
7.Data Interface port : format : NMEA0183 (4800 baud rate)
8.Power supply : DC13.8V ± 15%
9.Operating temperature: -15 ℃ - +55 ℃
10.Dimensions: 325 (W) * 235 (H) * 135 (D) mm

Note: Specifications are subject to change without notice.
