Product Datasheet
Marine Communication And Navigation Equipment
GPS (8.0-inch)
GPS (8.0-inch) (1).Main function 1.8.0-inch color LCD display screen with a resolution of 800 * 600 display. 2.Provided coastline of country (ECDIS), Geographic Names ,mark, Information ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Communication And Navigation Equipment
Standard
EN
Weight / Size
-15 ℃ - +55 ℃ 10.Dimensions:
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Communication And Navigation Equipment
Model / SKU
GPS-8-0-inch
Standard
EN
Weight / Size
-15 ℃ - +55 ℃ 10.Dimensions:
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China

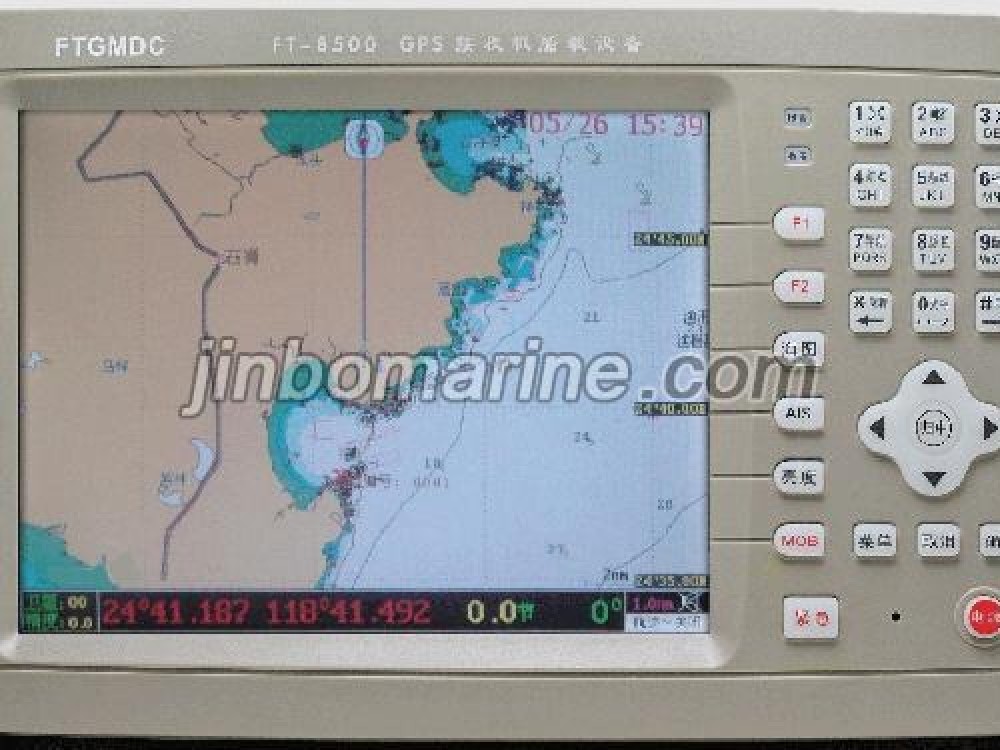

GPS (8.0-inch)
(1).Main function
1.8.0-inch color LCD display screen with a resolution of 800 * 600 display.
2.Provided coastline of country (ECDIS), Geographic Names ,mark, Information display
3.Provided waypoints, routes, track ,navigation plan function
4.Electronic compass, cursor, data navigation function
5.Provided arrival, course deviated , shift anchor alarm set function
6.Available to store 10,000 waypoints 10,000 mark, 200,000 track point,200 routes,
7.Provided Color selection of nautical charts
8.Provided AIS data information display interface (Option)
2.Provided coastline of country (ECDIS), Geographic Names ,mark, Information display
3.Provided waypoints, routes, track ,navigation plan function
4.Electronic compass, cursor, data navigation function
5.Provided arrival, course deviated , shift anchor alarm set function
6.Available to store 10,000 waypoints 10,000 mark, 200,000 track point,200 routes,
7.Provided Color selection of nautical charts
8.Provided AIS data information display interface (Option)
(2).Technical Specifications
1.Receiver frequency : L1 signal 1575.42MHz
2.Acquisition / capture sensitivity: ≤-136dBm
3.Initial position-fix : ≤ 2min
4.Positioning accuracy: ≤ 15m
5.Positioning angle of elevation : > 5 °
6.Display screen: 8.0 inch color LCD screen
7.Data Interface port : format: NMEA0183 (4800 baud rate)
8.Power supply : DC13.8V ± 15%
9.Operating temperature: -15 ℃ - +55 ℃
10.Dimensions: 270 (W) * 200 (H) * 104 (D) mm
2.Acquisition / capture sensitivity: ≤-136dBm
3.Initial position-fix : ≤ 2min
4.Positioning accuracy: ≤ 15m
5.Positioning angle of elevation : > 5 °
6.Display screen: 8.0 inch color LCD screen
7.Data Interface port : format: NMEA0183 (4800 baud rate)
8.Power supply : DC13.8V ± 15%
9.Operating temperature: -15 ℃ - +55 ℃
10.Dimensions: 270 (W) * 200 (H) * 104 (D) mm
Note: Specifications are subject to change without notice.
