| Gasoline slop water pump | |||||
| Set | Model | 80KB-3WG | 100KB-4WG | WP80 | WP100 |
| Name | Gasoline slop water pump | ||||
| Inlet/Outlet diameter | 80mm(3") | 100mm(4") | 80mm(3") | 100mm(4") | |
| Cont. Capacity(m3/h) | 45 | 80 | 45 | 80 | |
| Cont. Head lift(m) | 25 | 25 | 25 | 25 | |
| Max.Suction head(m) | 8 | 8 | 8 | 8 | |
| Engine | Engine model | 170F | 177F | GX160 | GX270 |
| Engine type | Single cylinder,4-stroke,air cooled gasoline engine | ||||
| Displacement(CC) | 208 | 270 | 208 | 243 | |
| Max.output power(HP) | 7.5 | 10 | 5.5 | 9 | |
| Rated spee(RPM) | 3600 | 3600 | 3600 | 3600 | |
| Fuel consumption ratio(g/kw.h) | <395 | <390 | <390 | <390 | |
| starting method | Recoil start | ||||
| Fuel tank capacity(L) | 3.6 | 3.6 | 3.6 | 6 | |
| Pack | Packing size(mm) | 585x450x495 | 615x445x540 | 565x445x460 | 665x460x610 |
| Net weight(Kgs) | 40 | 47 | 52 | 57 | |
| Gross weight(Kgs) | 42 | 49 | 54 | 59 | |
| 20FT Qty | 260 | 192 | 260 | 172 | |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Gasoline engine driven water pump

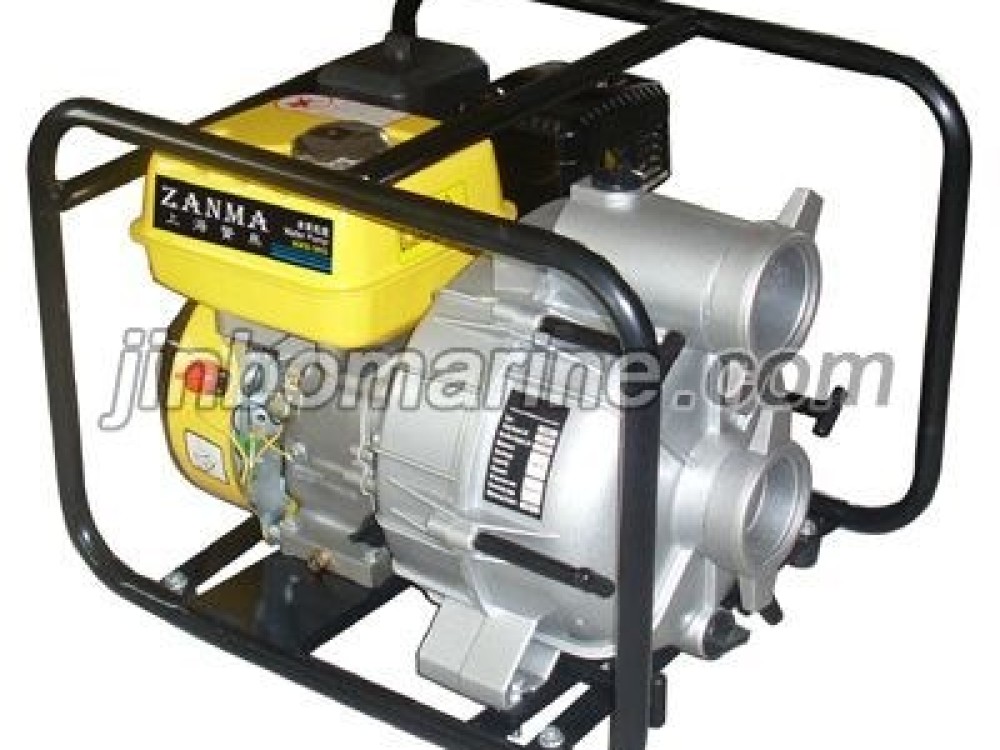

Gasoline slop water pump
Gasoline slop water pump Parameter Gasoline slop water pump Set Model 80KB-3WG 100KB-4WG ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Gasoline engine driven water pump
Standard
EN
Weight / Size
Head lift(m) 25 25 25 25 Max.Suction head(m) 8 8 8 8 Engine Engine model...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Gasoline engine driven water pump
Model / SKU
Gasoline-slop-water-pump
Standard
EN
Weight / Size
Head lift(m) 25 25 25 25 Max.Suction head(m) 8 8 8 8 Engine Engine model 170F 177F GX160 GX270 Engine type Single cylinder,4-stroke,air cooled gasoline engine Displacement(CC) 208 270 208 243 Max.output power(HP) 7.5 10 5.5 9 Rated spee(RPM) 3600 3600 3600 3600 Fuel consumption ratio(g/kw.h) <395 <390 <390 <390 starting method Recoil start Fuel tank capacity(L) 3.6 3.6 3.6 6 Pack Packing size(mm) 585x450x495 615x445x540 565x445x460 665x460x610 Net weight(Kgs) 40 47 52 57 Gross weight(Kgs) 42 49 54 59 20FT Qty 260 192 260 172
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
