Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Rudder

Guide bar flap rudder

Major advantages: 1.High lifting coefficient and reduced turning diameter 2.Increased steering quality of vessel 3.Improve the navigation stability of vessel effectively 4.Reduced rush-forward dis...

ISO9001 Supplier Class Certificate Export Supply

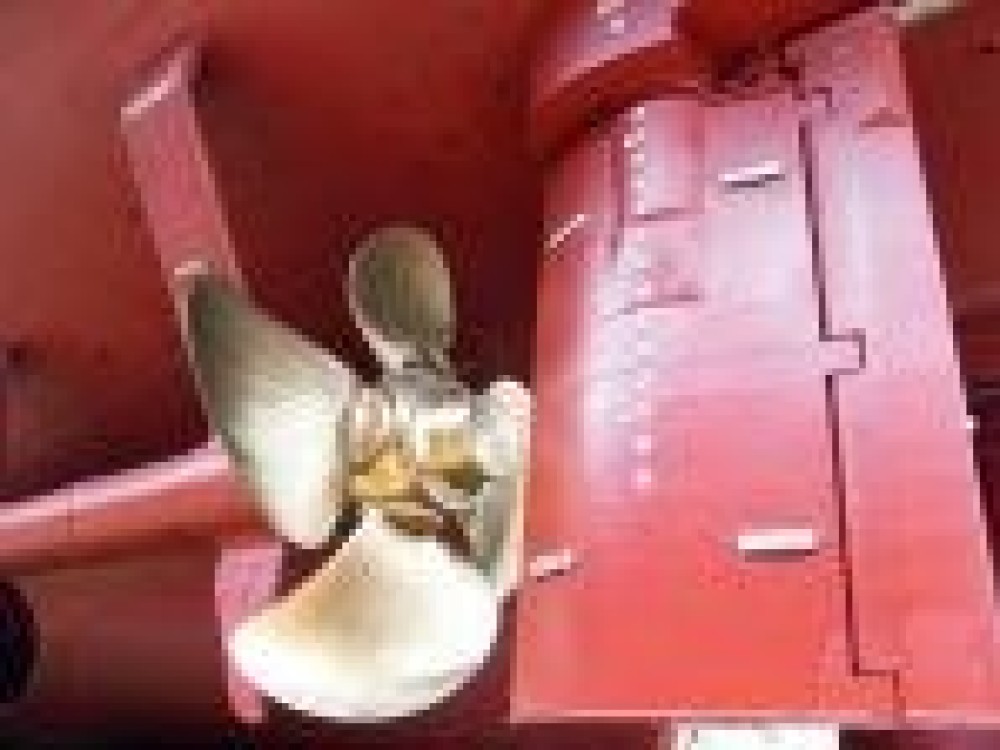

Guide bar flap rudder

Key Highlights

Category
Marine Rudder
Standard
EN
Material
1.High lifting coefficient and reduced turning diameter 2.Increased stee...
Certificate
ABS,BV,DNV,LR,GL,CCS etc.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Rudder
Model / SKU
Guide-bar-flap-rudder
Standard
EN
Material
1.High lifting coefficient and reduced turning diameter 2.Increased steering quality of vessel 3.Improve the navigation stability of vessel effectively 4.Reduced rush-forward distance of vessel when braking 5.EXtend navigation zone and increased economic 6.Rotation axis bush of non-metal material with water lubrication ,on pollution Applicable vessels:
Certificate
ABS,BV,DNV,LR,GL,CCS etc.
Warranty
12 Months unless specified otherwise
Origin
China


Major advantages:

1.High lifting coefficient and reduced turning diameter

2.Increased steering quality of vessel

3.Improve the navigation stability of vessel effectively

4.Reduced rush-forward distance of vessel when braking

5.EXtend navigation zone and increased economic

6.Rotation axis bush of non-metal material with water lubrication ,on pollution

Applicable vessels:

Especially suitable for the vessel with higher requirements for maneuverability ,such as tug boat ,rescue ship ,ro-ro passenger ship,dredger,exploration ship etc more kinds of ships.
