Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Air Conditioner

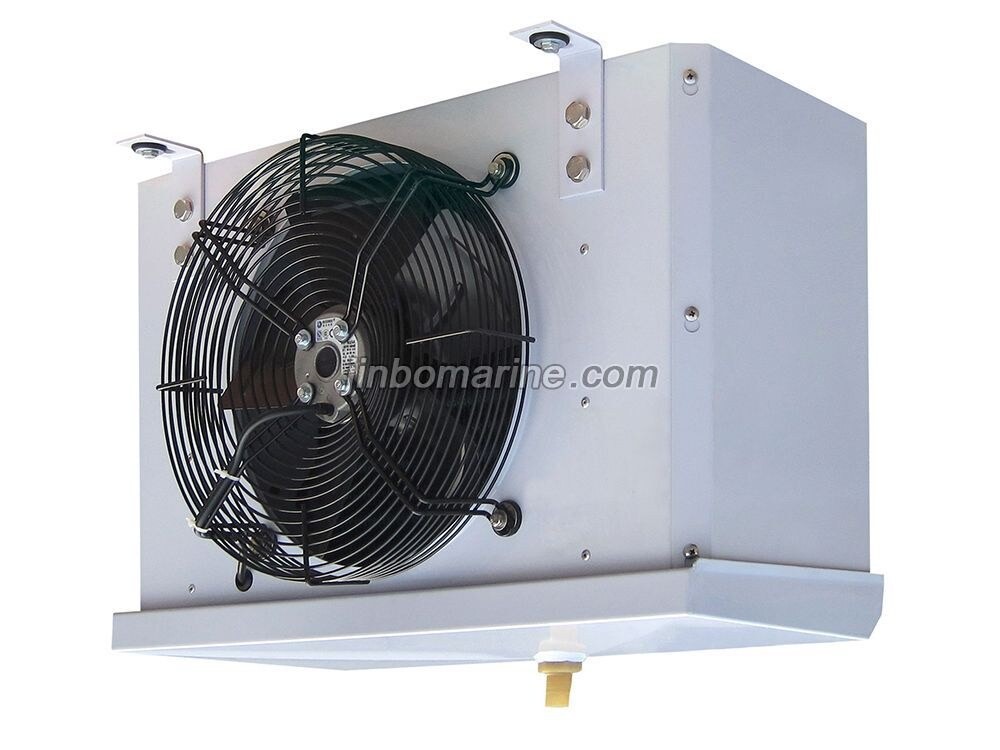

HUC Type Maine Air Cooler Unit

Description: HUC, LUC, Maine unit cooler is Freon direct evaporating coil with fin, it force air circulation to cool goods, thus it has features of little Freon charging capacity, high cooling efficiency, quick ...

ISO9001 Supplier Class Certificate Export Supply
HUC Type Maine Air Cooler Unit

Key Highlights

Category
Marine Air Conditioner
Standard
EN
Weight / Size
HUC, LUC, Maine unit cooler is Freon direct evaporating coil with fin, i...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Air Conditioner
Model / SKU
HUC-Type-Maine-Air-Cooler-Unit
Standard
EN
Weight / Size
HUC, LUC, Maine unit cooler is Freon direct evaporating coil with fin, it force air circulation to cool goods, thus it has features of little Freon charging capacity, high cooling efficiency, quick lowing temperature, uniform room temperature, compact structure, small volume, light weight ,convenient installing and maintaining etc.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Contents
  1. Description:
  2. Technical Data:

Description:

HUC, LUC, Maine unit cooler is Freon direct evaporating coil with fin, it force air circulation to cool goods, thus it has features of little Freon charging capacity, high cooling efficiency, quick lowing temperature, uniform room temperature, compact structure, small volume, light weight ,convenient installing and maintaining etc. CLG,CDL , marine high temperature unit cooler is used for the refrigerating room that the room temperature is over 0℃and for storing non freeze resistance food and cooked food such as: Vegetables, melons and fruits, dairy products, bean products, eggs etc. and it is widely used for food refrigerating room temperature is lower than 0℃.

It is used for storing meat, fish or birds etc. and for refrigerating ice cabinet, ice-cream brick, medicine chemical reagent, import or export transporting food etc.

Technical Data:

Type HUC-8 HUC-13 HUC-20 HUC-25
Cooling Capacity KW 2.09 2.91 4.65 5.58
Room temperature
Evaporature temperature℃
+1~5/-9~5℃
Cooling medium R22(R134A,R404A,R407C)
Connection Pipe liquid inlet pipe Φ12X1
return air pipe Φ19.5x1.5 Φ19.5x1.5 Φ19.5x1.5 Φ22.5x1.5
drain pipe G"
Evaporating Type Copper tube aluminium fin with
repellent copper tube copper fin
fan type set Horizontalx1 Horizontalx1 Horizontalx2 Horizontalx2
air flow 1000 1700 1000x2 1700x2
total pressure 170
Matched motor power supply AC380V 3P 50Hz/440V 3P 60Hz
type set Marine hermetic
power W 90 105 2x90 2x115
rev r/min 2900
AC220V defost
electric heater
installing party coil 5x200 5x350 5x550 5x600
drip pan 200 350 500 600
drain pipe 160
insulating resistance cold state ≥50
hot state ≥0.5
Defrost control model Automatic timing defrotst,also can maual control
LxWxH 730x425x490 730x425x490 1130x425x490 1130x425x490
Weight 35 65 120 130
