Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Optical Instrument

High Definition 7x50 Marine Binoculars

Magnification:7X Objective diameter:50mm Material:metal,all-optical glass,rubber Color:black Eyepiece diameter:24.5mm Angular field of view:7 degree Field of view:125m/1000m Exit pupil diameter:5 mm Eye relief ...

ISO9001 Supplier Class Certificate Export Supply

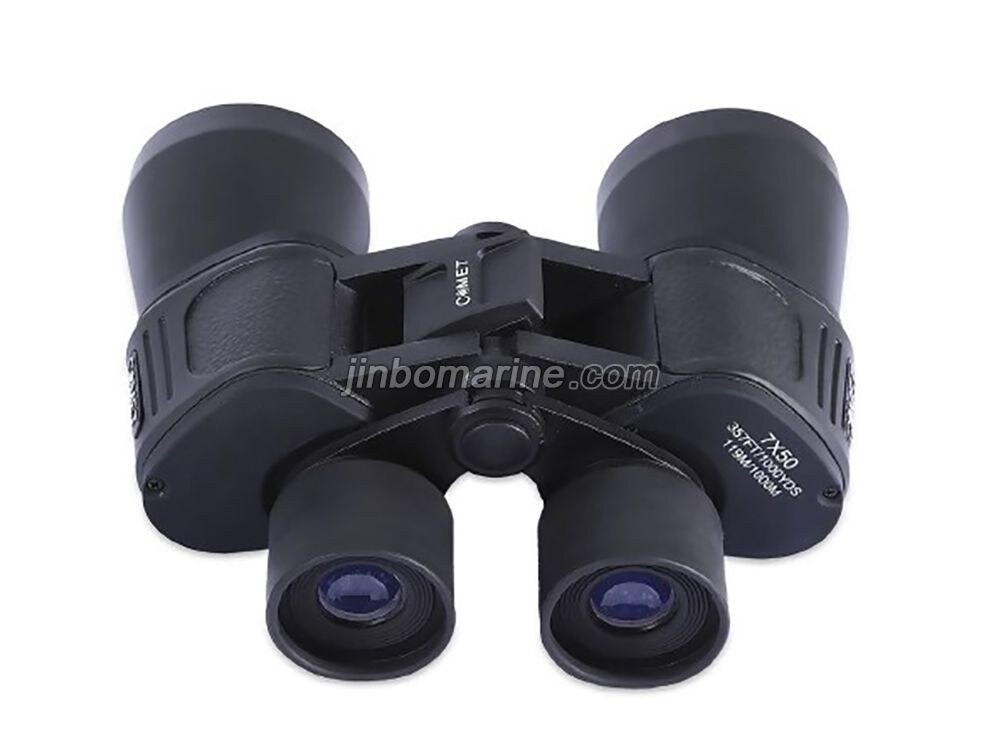

High Definition 7x50 Marine Binoculars

Key Highlights

Category
Marine Optical Instrument
Standard
EN
Material
Magnification:7X Objective diameter:50mm Material:metal,all-optical glas...
Weight / Size
Magnification:7X Objective diameter:50mm Material:metal,all-optical glas...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Optical Instrument
Model / SKU
High-Definition-7x50-Marine-Binoculars
Standard
EN
Material
Magnification:7X Objective diameter:50mm Material:metal,all-optical glass,rubber Color:black Eyepiece diameter:24.5mm Angular field of view:7 degree Field of view:125m/1000m Exit pupil diameter:5 mm Eye relief :15.5mm Close focus:5m/16.4ft Light intensity:23 Twilight factor:22 Resolution:11.5 Prism:bak7 Product size:195X52X187mm G.W./N.W.:
Weight / Size
Magnification:7X Objective diameter:50mm Material:metal,all-optical glass,rubber Color:black Eyepiece diameter:24.5mm Angular field of view:7 degree Field of view:125m/1000m Exit pupil diameter:5 mm Eye relief :15.5mm Close focus:5m/16.4ft Light intensity:23 Twilight factor:22 Resolution:11.5 Prism:bak7 Product size:195X52X187mm G.W./N.W.:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China High Definition 7x50 Marine Binoculars:

Magnification:7X
Objective diameter:50mm
Material:metal,all-optical glass,rubber
Color:black
Eyepiece diameter:24.5mm
Angular field of view:7 degree
Field of view:125m/1000m
Exit pupil diameter:5 mm
Eye relief :15.5mm
Close focus:5m/16.4ft
Light intensity:23
Twilight factor:22
Resolution:11.5
Prism:bak7
Product size:195X52X187mm
G.W./N.W.: 23kg/22kg
