Marine & Offshore Equipment Datasheet
Product Datasheet
Load Binder

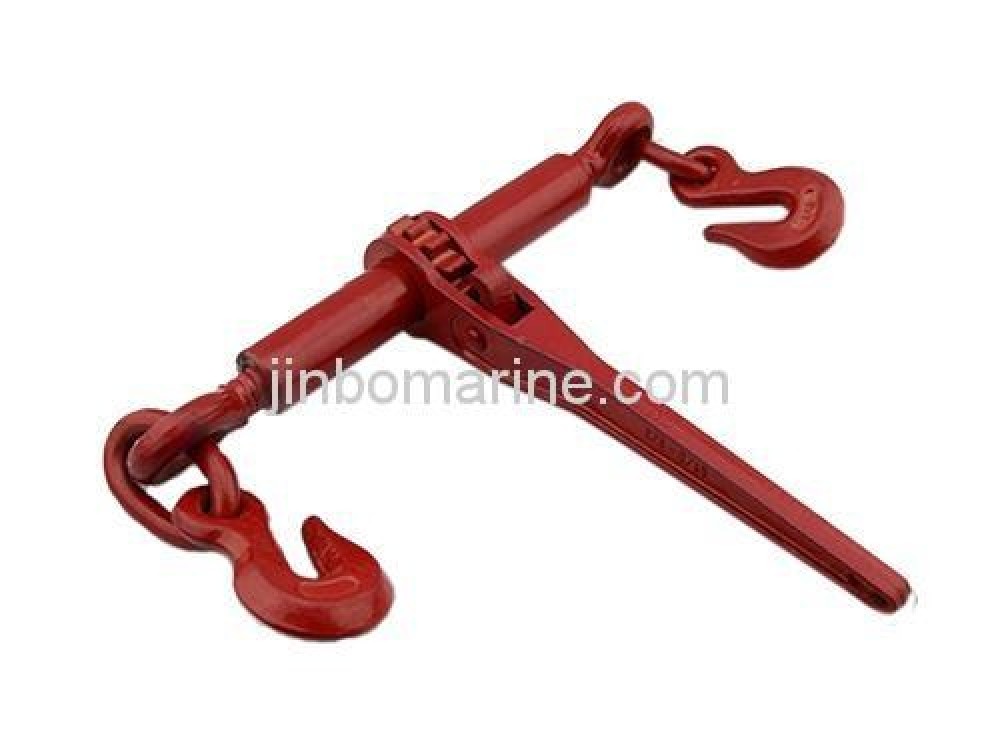

High Test Red Painted US Type Ratchet Type Load Binder
Similar Name US Type Ratchet Type Load Binder Spray Plastics Ratchet Type Load Binder Drop Forged Ratchet Type Load Binder Standard ratchet type load binder hook and hook Main Specifi...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Load Binder
Standard
EN
Material
45# Steel
Weight / Size
Similar Name US Type Ratchet Type Load Binder Spray Plastics Ratchet Typ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Load Binder
Model / SKU
High-Test-Red-Painted-US-Type-Ratchet-Type-Load-Binder
Standard
EN
Material
45# Steel
Weight / Size
Similar Name US Type Ratchet Type Load Binder Spray Plastics Ratchet Type Load Binder Drop Forged Ratchet Type Load Binder Standard ratchet type load binder hook and hook Main Specification Compromise of handle and hooks Forging and casting 45# Steel Size Table A B C E E1 F F1 G Chain Size(in) WLL(lbs) Weight(lbs) Handle Length(in) 7.16 0.89 1.77 16.22 21.26 17.79 22.83 0.35 1/4-5/16 2600 3.52 7.16 13.92 1.3 2.6 22.64 30.64 25.25 33.24 0.51 5/16-3/8 5400 10.5 13.42 13.92 1.3 2.6 24.13 32.13 27.04 35.04 0.59 3/8-1/2 9200 12.9 13.92 13.92 1.3 2.6 26.45 34.45 30.07 38.07 0.74 1/2-5/8 13000 14.38 13.92
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Similar Name
Main Specification
Compromise of handle and hooks
Forging and casting
45# Steel
Size Table
| A | B | C | E | E1 | F | F1 | G | Chain Size(in) | WLL(lbs) | Weight(lbs) | Handle Length(in) |
| 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 22.83 | 0.35 | 1/4-5/16 | 2600 | 3.52 | 7.16 |
| 13.92 | 1.3 | 2.6 | 22.64 | 30.64 | 25.25 | 33.24 | 0.51 | 5/16-3/8 | 5400 | 10.5 | 13.42 |
| 13.92 | 1.3 | 2.6 | 24.13 | 32.13 | 27.04 | 35.04 | 0.59 | 3/8-1/2 | 9200 | 12.9 | 13.92 |
| 13.92 | 1.3 | 2.6 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 | 1/2-5/8 | 13000 | 14.38 | 13.92 |
