BB3(KDY) according to API 610 standard
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
API610 Petrochemical Centrifugal Pump

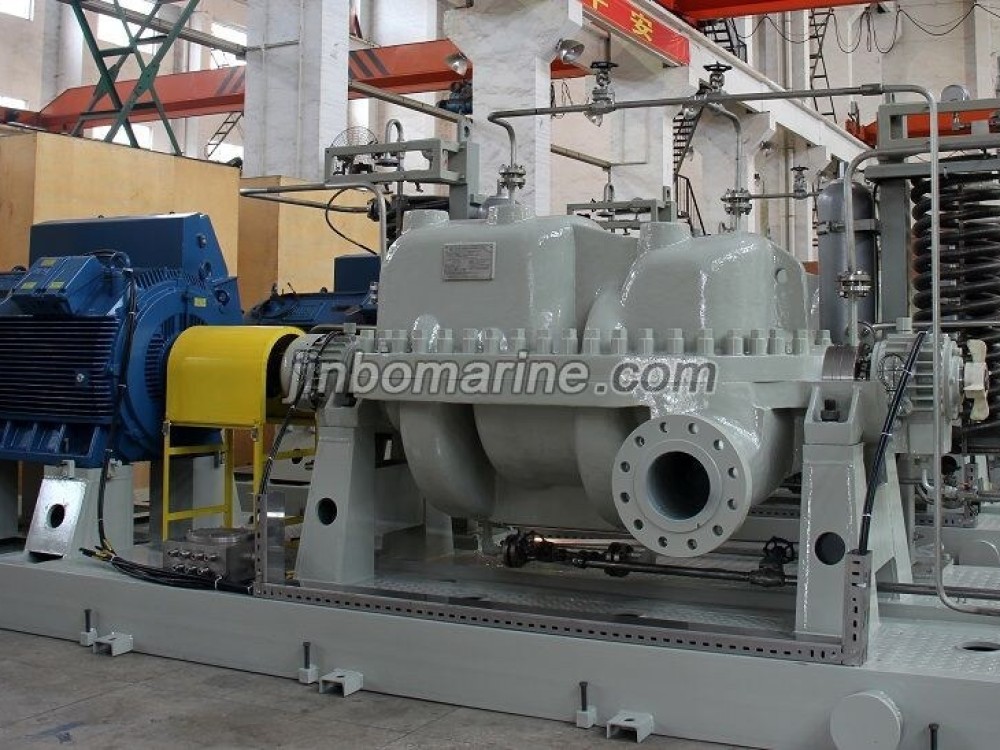

Horizontal Split Casing Multi-Stage Centrifugal Pump
Horizontal Split Casing Multi-Stage Centrifugal Pump Model and Executive Standard: BB3(KDY) according to API 610 standard Performance Range: Capacity: ~8000m3/h Heads: ~1800m Temperatu...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
API610 Petrochemical Centrifugal Pump
Standard
DIN
Material
bronze body, SS316 nozzle, Cast iron
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
API610 Petrochemical Centrifugal Pump
Model / SKU
Horizontal-Split-Casing-Multi-Stage-Centrifugal-Pump
Standard
DIN
Material
bronze body, SS316 nozzle, Cast iron
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Horizontal Split Casing Multi-Stage Centrifugal Pump
Model and Executive Standard:
Performance Range:
Capacity: ~8000m3/h
Heads: ~1800m
Temperatures: ~205Deg
Design pressure: ~30Mpa
Application:
Oil filed and sewage water, dirty oil and residual oil transportation
Crude oil and production oil pipeline, water supply.
All kinds of long distance water transportation
High Pressure water injection, sea water desalinization
Feature:
KDY: Multi-stage(more than two stage) centrifugal pump(BB3).
Back to back impeller installtion to balance the axially force, pressurized-water chamber adopts double volute design to balance the redially force, double first scution stage for lower NPSHr requests. KDY pumps are equipped with Changeable water rings. Impellers are static balance tested and dynamic balance tested.
