Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Valve Remote Control System

Hydraulic Actuator

Double-acting hydraulic actuator The actuator can be used in the system whose working pressure is 6.3MPa, 10MPa, 12MPa, etc... The working pressure is different, the arrange of torque is different. Spring return sing...

ISO9001 Supplier Class Certificate Export Supply

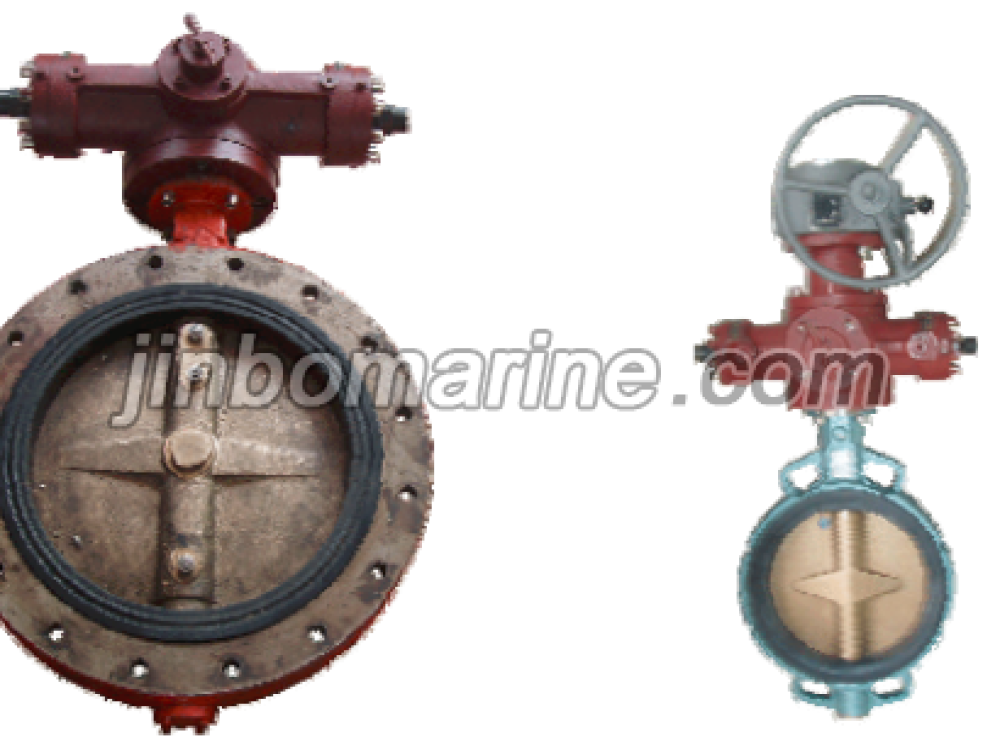

Hydraulic Actuator

Key Highlights

Category
Valve Remote Control System
Standard
EN
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Valve Remote Control System
Model / SKU
Hydraulic-Actuator
Standard
EN
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Hydraulic Actuator:

Double-acting hydraulic actuator
The actuator can be used in the system whose working pressure is 6.3MPa, 10MPa, 12MPa, etc... The working pressure is different, the arrange of torque is different.

Spring return single-acting hydraulic actuator
System working pressure is the pressure for opening valve. The pressure of closed valve is settled before leaving factory. But, the pressure of closed valve can be designed, compared with client requirement.

Accumulator return single-acting hydraulic actuator
System working pressure is the pressure for opening valve. The pressure of closed valve is settled before leaving factory. But, the pressure of closed valve can be designed, compared with client requirement.
