Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Explosion-proof Lights Series

Incandescent Explosion-Proof Light CFD1

Applied to the ship, petroleum, platform and chemical area which may has gas of inflammable and explosive.

ISO9001 Supplier Class Certificate Export Supply

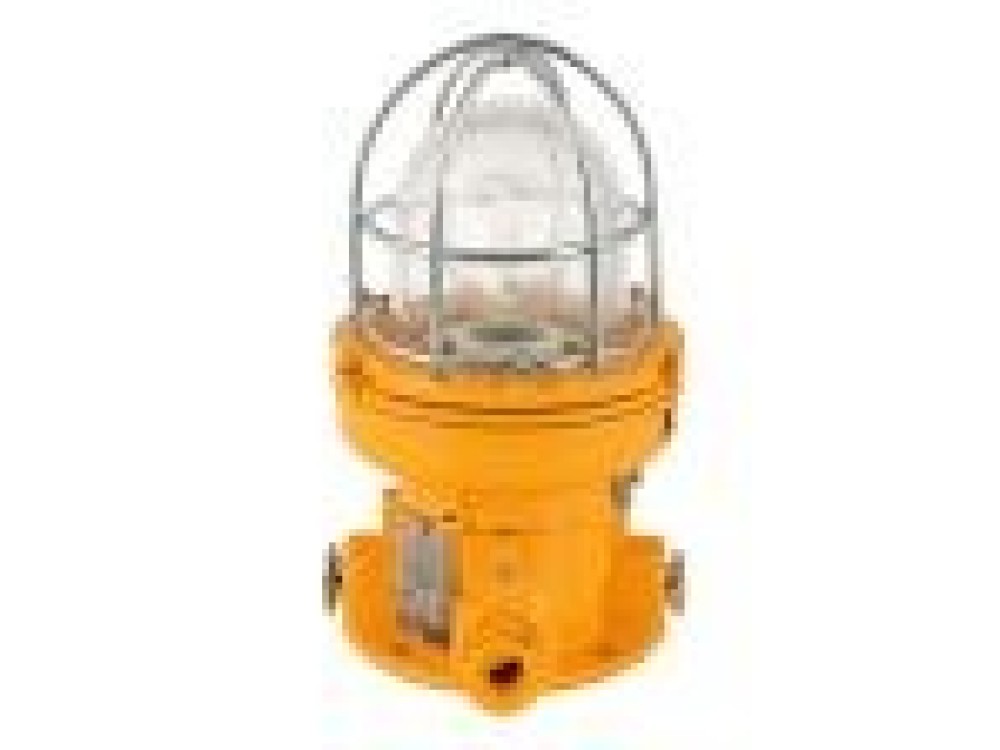

Incandescent Explosion-Proof Light CFD1

Key Highlights

Category
Marine Explosion-proof Lights Series
Standard
EN
Material
Aluminum
Weight / Size
Explosion-proof Mark Exd II CT4 Voltage 220V,24V Power
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Explosion-proof Lights Series
Model / SKU
Incandescent-Explosion-Proof-Light-CFD1
Standard
EN
Material
Aluminum
Weight / Size
Explosion-proof Mark Exd II CT4 Voltage 220V,24V Power <=100W Illuminant  Incandescent Lamp Lamp Holder E27 Protection Class IP65 Cable Diameter Dia11-13mm Weight 2.9kg
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Incandescent Explosion-Proof Light CFD1:

Applied to the ship, petroleum, platform and chemical area which may has gas of inflammable and explosive.

Main Specification:

Explosion-proof Mark Exd II CT4
Voltage 220V,24V
Power <=100W
Illuminant Incandescent Lamp
Lamp Holder E27
Protection Class IP65
Cable Diameter Dia11-13mm
Weight 2.9kg
