Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Explosion-proof Lights Series

Incandescent Explosion-Proof Light CFD4

Applied to the illumination in-2 zone dangerous places of hydric gas and air admixture, ethyne and other gas adminsture.

ISO9001 Supplier Class Certificate Export Supply

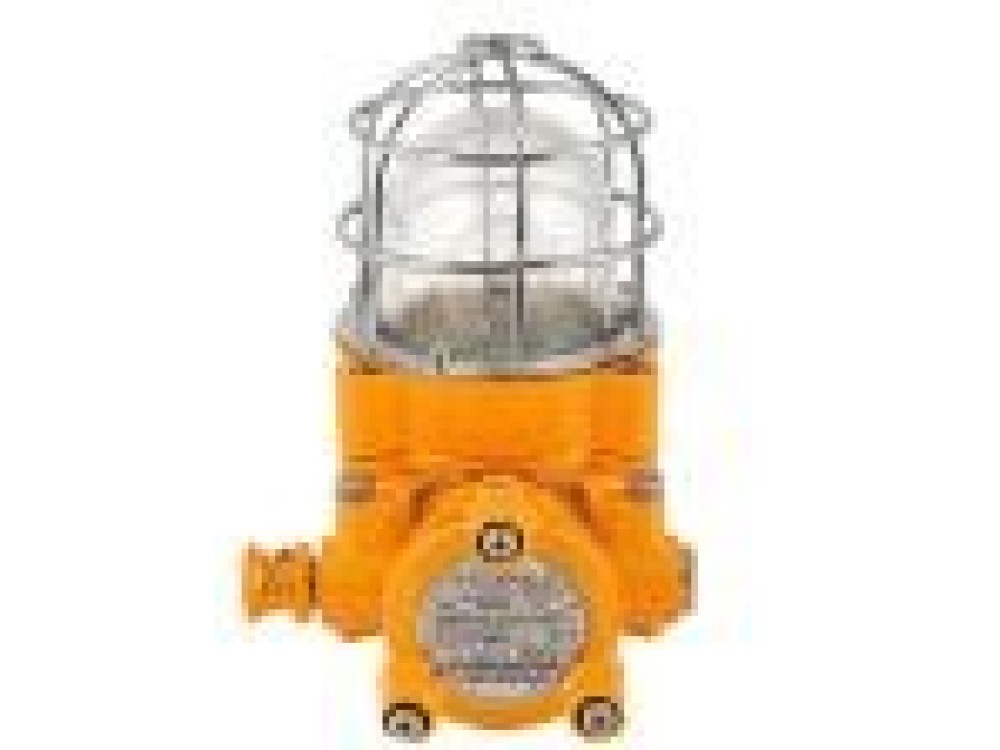

Incandescent Explosion-Proof Light CFD4

Key Highlights

Category
Marine Explosion-proof Lights Series
Standard
EN
Material
Brass
Weight / Size
Type CFD4a CFD4b CFD4c Explosion-proof Mark Exd II C T4 Exd II C T6 Exd ...
Certificate
CCS Type Approval
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Explosion-proof Lights Series
Model / SKU
Incandescent-Explosion-Proof-Light-CFD4
Standard
EN
Material
Brass
Weight / Size
Type CFD4a CFD4b CFD4c Explosion-proof Mark Exd II C T4 Exd II C T6 Exd II CT3 Voltage 24-220V 24-220V 220V Power 60W 25W 100W Illuminant  Incandescent Lamp Lamp Holder E27 Protection Class IP66 IP66 IP66 Material Brass Cable Diameter Dia11-13mm Weight 13kg 13kg 13kg
Certificate
CCS Type Approval
Warranty
12 Months unless specified otherwise
Origin
China

China Incandescent Explosion-Proof Light CFD4:

Applied to the illumination in-2 zone dangerous places of hydric gas and air admixture, ethyne and other gas adminsture.

Main Specification:

Type CFD4a CFD4b CFD4c
Explosion-proof Mark Exd II C T4 Exd II C T6 Exd II CT3
Voltage 24-220V 24-220V 220V
Power 60W 25W 100W
Illuminant Incandescent Lamp
Lamp Holder E27
Protection Class IP66 IP66 IP66
Material Brass
Cable Diameter Dia11-13mm
Weight 13kg 13kg 13kg
