Product Datasheet

Sensor

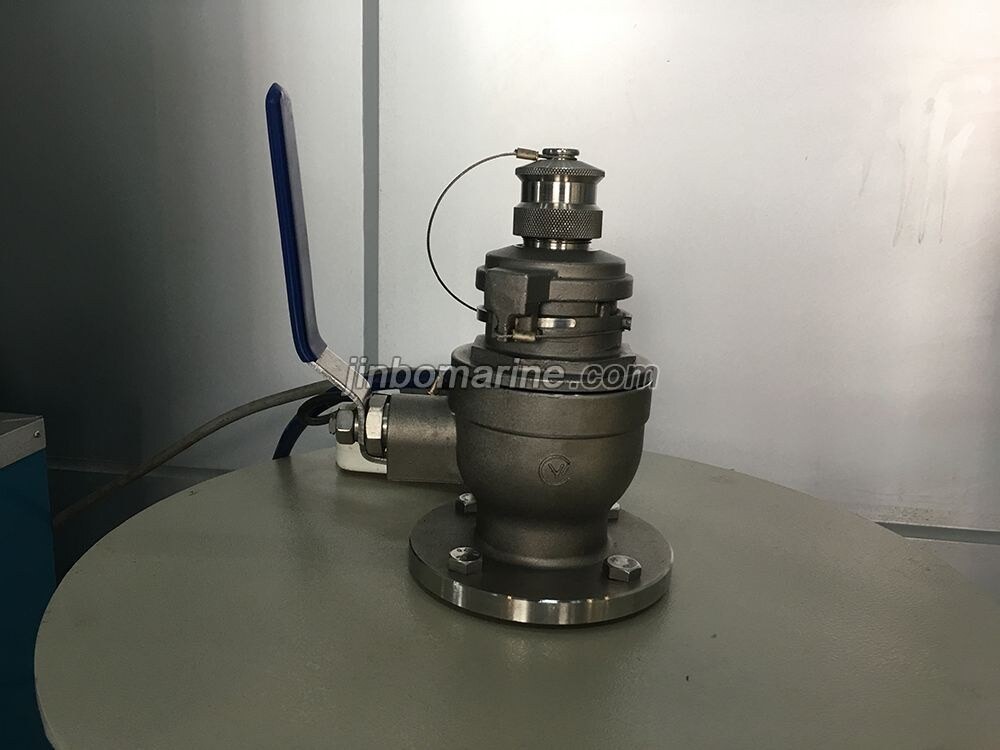

JBF Type Deck Valve

Product Description: It is a connection device for tanker and oil and chemical ship,which can quick connect to the measuring equipments,like oil water interface detector,hermetic sampler,oil tanker pressure gauging...

ISO9001 Supplier Class Certificate Export Supply
JBF Type Deck Valve

Key Highlights

Category
Sensor
Standard
CB
Material
Nominal diameter:DN50 Nominal pressure:0.20MPa Material of valve body:SU...
Weight / Size
Nominal diameter:DN50 Nominal pressure:0.20MPa Material of valve body:SU...
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Sensor
Model / SKU
JBF-Type-Deck-Valve
Standard
CB
Material
Nominal diameter:DN50 Nominal pressure:0.20MPa Material of valve body:SUS304,SUS316 Material of valve seat:PTFE Applicable medium:oil,seawater and chemicals Quick connection:1",2" quick connector Connection flange:CBM1012-81 , PN 0.5 Overall Dimension:
Weight / Size
Nominal diameter:DN50 Nominal pressure:0.20MPa Material of valve body:SUS304,SUS316 Material of valve seat:PTFE Applicable medium:oil,seawater and chemicals Quick connection:1",2" quick connector Connection flange:CBM1012-81 , PN 0.5 Overall Dimension:
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
Warranty
12 Months unless specified otherwise
Origin
China

Product Description:

It is a connection device for tanker and oil and chemical ship,which can quick connect to the measuring equipments,like oil water interface detector,hermetic sampler,oil tanker pressure gauging device and sludge tape etc.Also can be used in other industrial places with similar requirements.

Main Technical Specification:

Nominal diameter:DN50

Nominal pressure:0.20MPa

Material of valve body:SUS304,SUS316

Material of valve seat:PTFE

Applicable medium:oil,seawater and chemicals

Quick connection:1",2" quick connector

Connection flange:CBM1012-81 , PN 0.5

Overall Dimension:
