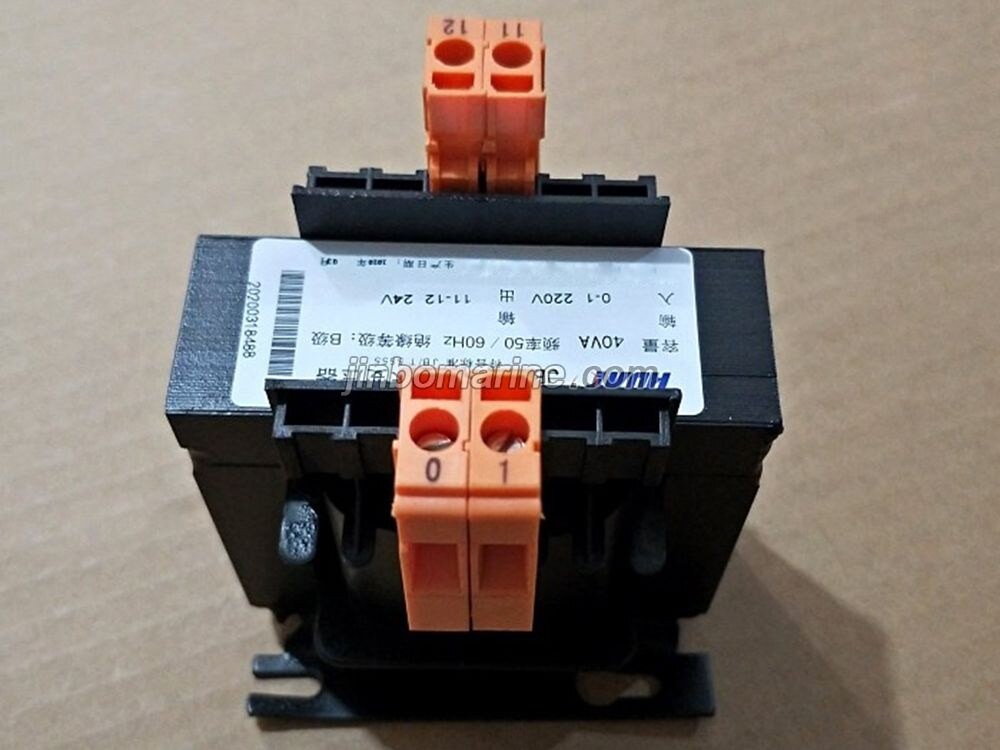

JBK5-40 Marine Minitype Control Transformer

JBK series control transformer design refers to relevant standards like VDE0550, IEC204-1 and GB5226, applies to AC.50~60Hz frequency power. There are press-fit and and plug-in two connection methods are adopted and equipped with terminals to prevent touching protection requirements by accident.

This product have attribute of excellent performance, safe and reliable wiring, which can be widely used in control and lighting for various industrials such as power distribution cabinet for ship, machinery, metallurgy, mine, light textile, rubber, chemical engineering, papermaking and printing, and also can be used as isolation transformer.

Technical data:

JBK5-40~630

Dimensions Item Type	B	D	E	Hole		Mounting hole K×J
	max	max	max	Hole
	max	max	max	A	C
JBK5-40~63	83	80	105	56±0.4	46±2.5	4.8×9
JBK5-100	86	95	105	64±0.4	63±2.5	4.8×9
JBK5-160	98	100	118	84±0.4	71±3.0	5.8×11
JBK5-250	98	110	118	84±0.4	85±3.0	5.8×11
JBK5-400	122	110	135	90±0.4	85±3.0	5.8×9
JBK5-630	152	120	158	122±0.4	90±3.5	7×13

JBK5 Ⅱ-40~800

Dimensions Item Type	B	D	E	Hole		Mounting hole K×J
	max	max	max	Hole
	max	max	max	A	C
JBK5Ⅱ-40~63	83	80	105	56±0.4	46±2.5	4.8×9
JBK5Ⅱ-100	86	95	105	64±0.4	63±2.5	4.8×9
JBK5Ⅱ-160	98	100	118	84±0.4	71±3.0	5.8×11
JBK5Ⅱ-250	98	110	118	84±0.4	85±3.0	5.8×11
JBK5Ⅱ-400	122	110	135	90±0.4	85±3.0	5.8×9
JBK5Ⅱ-630	152	120	158	122±0.4	90±3.5	7×13
JBK5Ⅱ-800	152	130	158	122±0.4	106±3.0	7×13
