JC-L High Level /Overfill Alarm System，Bilge Well Alarm System

Description DJC-L Type High Level /Overfill alarm system & Bilge Well Alarm System can be used on oil tank/ chemical tank/ offshore vessels. The system can monitoring the liquid level in the tanks and give ou...

ISO9001 Supplier Class Certificate Export Supply
JC-L High Level /Overfill Alarm System，Bilge Well Alarm System

Key Highlights

Category
Marine Conservation
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Conservation
Model / SKU
JC-L-High-Level-Overfill-Alarm-System-Bilge-Well-Alarm-System
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Description

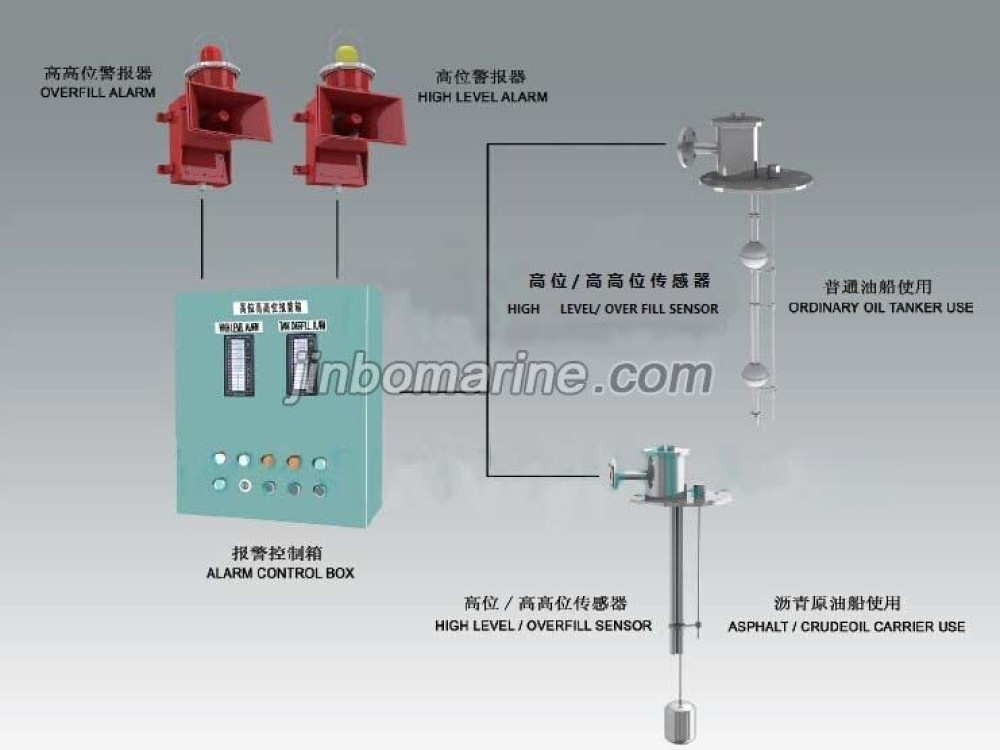

DJC-L Type High Level /Overfill alarm system & Bilge Well Alarm System can be used on oil tank/ chemical tank/ offshore vessels. The system can monitoring the liquid level in the tanks and give out alarm signal when the level reach the preset value, then the alarm signal will send to extend repeater. The system is meet the requirement of SOLAS and IMO, and can be easy to operate. Dual UPS power supply and automatic changeover.

Intelligent Meter

Technical data: Type: DJC-H
Working voltage: DC18V～DC28V
Input signal: Digital / switch
Max. Loops: 16

Outputs: Relay contacts (AC250V/5A)

Extend Horn

The extend horn with rotating light, mounted on compass deck, can provide different alarm tones and different colors, easy to remind the duty officer to deal with alarm conditions.

Technical data:
Working voltage: DC24V
Tone: several kinds
Protection class: IP56
