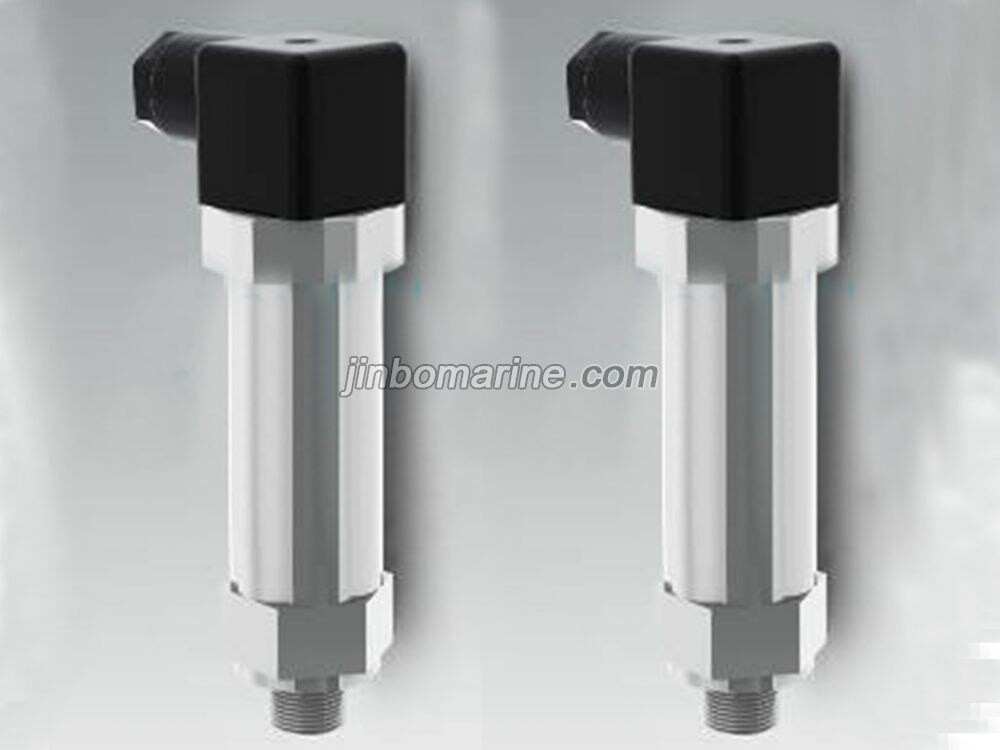

JINBO Pressure sensor

Description Pressure sensor can be used for monitor the level/pressure alarm of the tanks/pipes/cabins of the ship, petroleum, chemical, medicine and other industries. Adopted with national components, it ...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Marine Conservation
Standard
EN
Material
Exia Ⅱ CT6 Material:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Description

Pressure sensor can be used for monitor the level/pressure alarm of the tanks/pipes/cabins of the ship, petroleum, chemical, medicine and other industries.

Adopted with national components, it is high precision, and low work environment requirement.

Technical Parameters：

Type:STK333-AR2-L1、STK333-AR2-L1；

Working voltage: DC24V;

Output signal: 4-20 mA DC, 2-wire
Accuracy: ±0.5%FS；
Working temperature: -20℃～80℃；
Protection class: ：IP68；
Explosion-proof: Exia Ⅱ CT6
Material: SUS304

Specialty:

The sensor adopts imported components;
Well anti-jamming, anti-shaking and damp proof
Reliable performance, approved by international classification societies;
Product line complete, meet the different requirements for all occasions.
