| Size(mm) | Code | SWL(KGS) | Rope Diameter |
| 140 | W2AL140 | 660 | 14 |
| 180 | W2AL180 | 110 | 18 |
| 200 | W2AL200 | 1300 | 20 |
| 220 | W2AL220 | 1600 | 22 |
| 240 | W2AL240 | 1800 | 24 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
JIS Steel Cargo Block

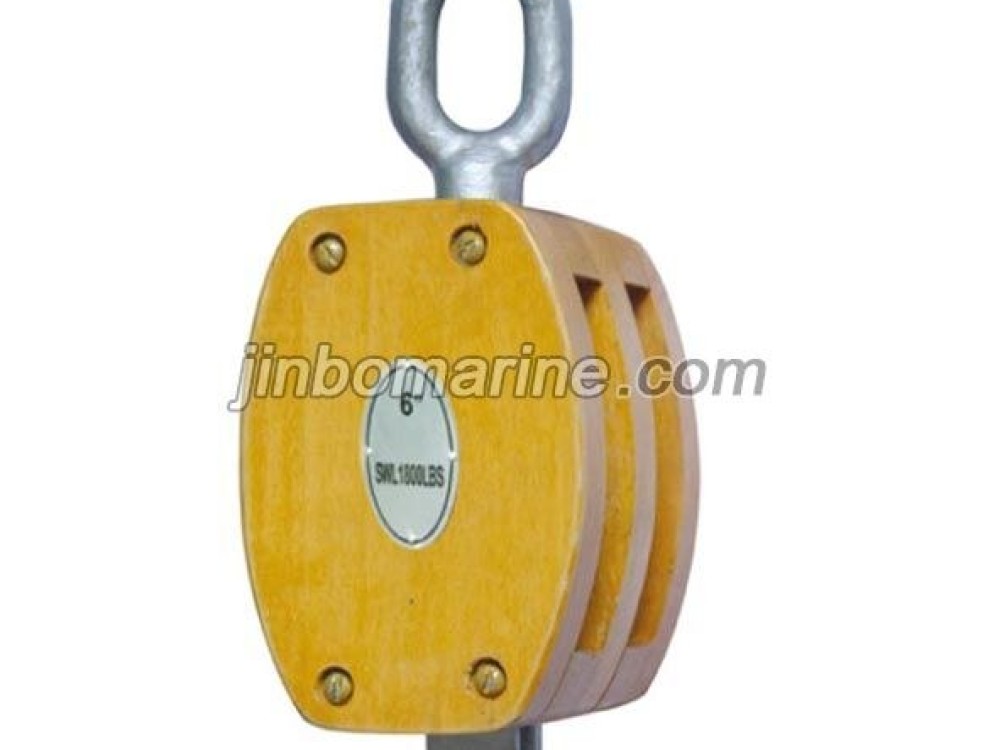

JIS F3426 Ship's internal-bound wooden block double with Link
Size(mm) Code SWL(KGS) Rope Diameter 140 W2AL140 660 14 180 W2AL180 ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
JIS Steel Cargo Block
Standard
JIS
Weight / Size
Size(mm) Code SWL(KGS) Rope Diameter 140 W2AL140 660 14 180 W2AL180 110 ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
JIS Steel Cargo Block
Model / SKU
JIS-F3426-Ship-s-internal-bound-wooden-block-double-with-Link
Standard
JIS
Weight / Size
Size(mm) Code SWL(KGS) Rope Diameter 140 W2AL140 660 14 180 W2AL180 110 18 200 W2AL200 1300 20 220 W2AL220 1600 22 240 W2AL240 1800 24
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
