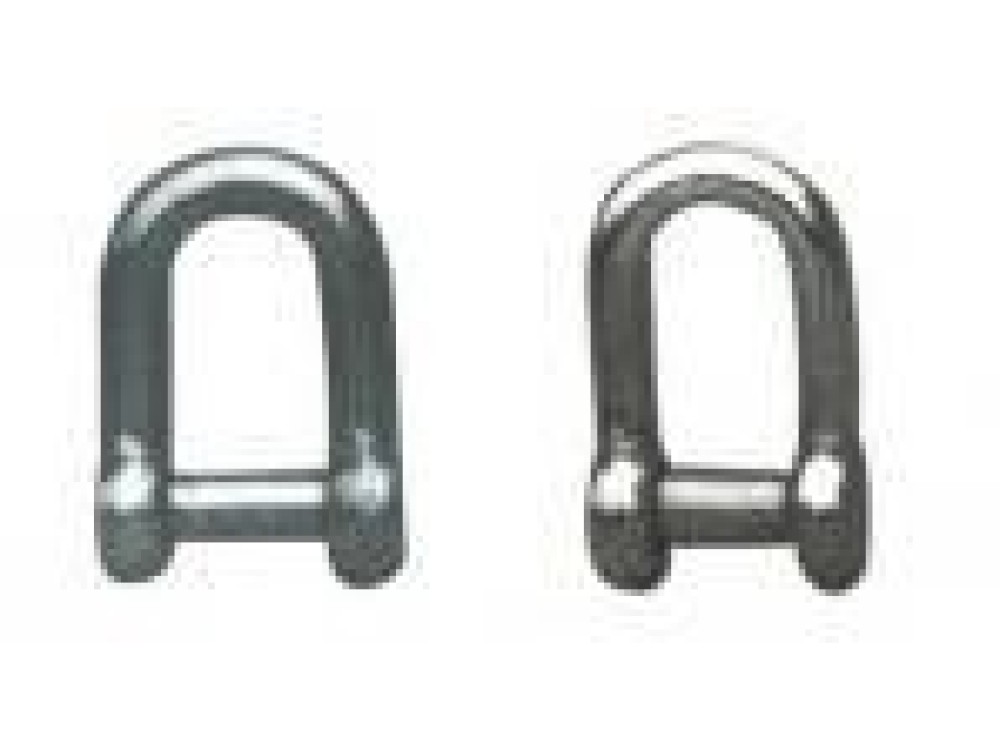

JIS Type Screw Pin Dee Shackle
AISI 316 & 304
Stainless Steel
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Shackle
JIS Standard Shackle
JIS Type Screw Pin Dee Shackle AISI 316 & 304 Stainless Steel Main Specification Size...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Shackle
Standard
JIS
Material
JIS Type Screw Pin Dee Shackle AISI 316 & 304 Stainless Steel Main Speci...
Weight / Size
JIS Type Screw Pin Dee Shackle AISI 316 & 304 Stainless Steel Main Speci...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Shackle
Model / SKU
JIS-Standard-Shackle
Standard
JIS
Material
JIS Type Screw Pin Dee Shackle AISI 316 & 304 Stainless Steel Main Specification Size(mm) WLL(Tons) WT(kgs) 4 0.09 0.008 5 0.1 0.01 6 0.15 0.023 8 0.25 0.052 10 0.5 0.095 12 0.6 0.19 16 1.1 0.44 20 1.6 0.8 22 2.5 1.2 25 3 1.72 28 3.5 2.5 32 4.5 3.7
Weight / Size
JIS Type Screw Pin Dee Shackle AISI 316 & 304 Stainless Steel Main Specification Size(mm) WLL(Tons) WT(kgs) 4 0.09 0.008 5 0.1 0.01 6 0.15 0.023 8 0.25 0.052 10 0.5 0.095 12 0.6 0.19 16 1.1 0.44 20 1.6 0.8 22 2.5 1.2 25 3 1.72 28 3.5 2.5 32 4.5 3.7
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China JIS Standard Shackle:
Main Specification
| Size(mm) | WLL(Tons) | WT(kgs) |
| 4 | 0.09 | 0.008 |
| 5 | 0.1 | 0.01 |
| 6 | 0.15 | 0.023 |
| 8 | 0.25 | 0.052 |
| 10 | 0.5 | 0.095 |
| 12 | 0.6 | 0.19 |
| 16 | 1.1 | 0.44 |
| 20 | 1.6 | 0.8 |
| 22 | 2.5 | 1.2 |
| 25 | 3 | 1.72 |
| 28 | 3.5 | 2.5 |
| 32 | 4.5 | 3.7 |
