JTZK navy integral air conditioning unit is direct expansion, sea water cooled small sized marine heating and cooling unit, which includes cooling compressor, coaxial condenser, evaporator, centrifugal fan, 4-way solenoid valve , accumulator, pressure switch, condensate water pan, return air filter mesh, control box and control panel etc. The control has touch panel procedure control and knob type. The location of the unit can be under a seat berth, in a closet or in a locker, through flexible pre-insulated duct the conditioned air will be sent to supply air grill at high place and regulate the chamber temperature.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Air Conditioner

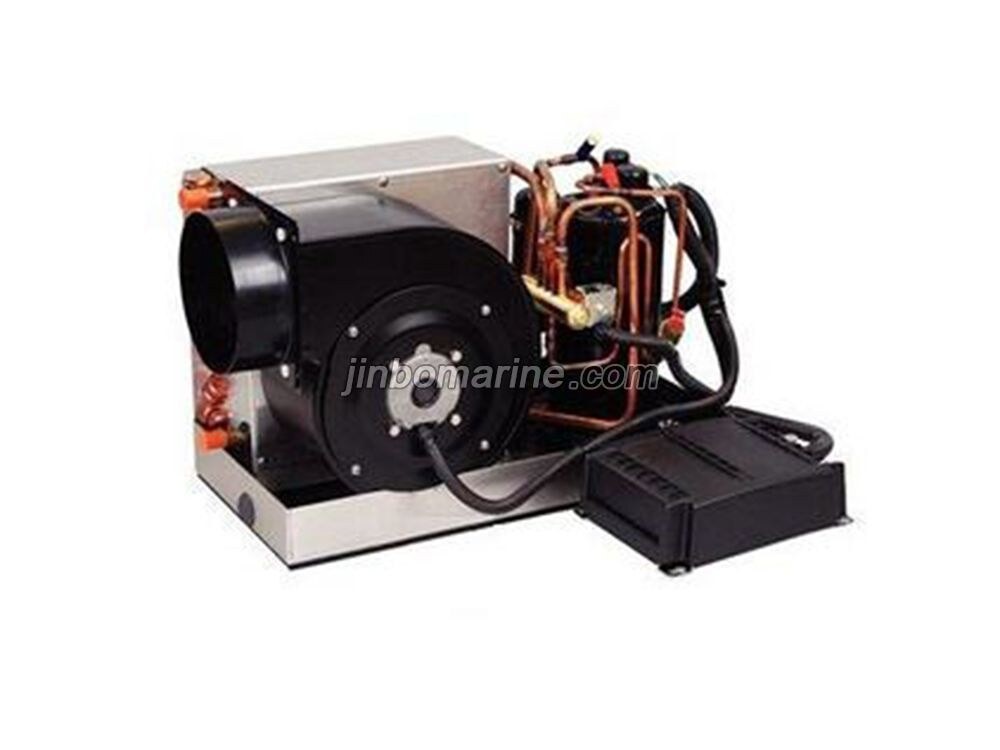

JTZK Navy Integral Air Conditioning Unit
Description: JTZK navy integral air conditioning unit is direct expansion, sea water cooled small sized marine heating and cooling unit, which includes cooling compressor, coaxial condenser, evaporator, ce...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Air Conditioner
Standard
EN
Weight / Size
JTZK navy integral air conditioning unit is direct expansion, sea water ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Air Conditioner
Model / SKU
JTZK-Navy-Integral-Air-Conditioning-Unit
Standard
EN
Weight / Size
JTZK navy integral air conditioning unit is direct expansion, sea water cooled small sized marine heating and cooling unit, which includes cooling compressor, coaxial condenser, evaporator, centrifugal fan, 4-way solenoid valve , accumulator, pressure switch, condensate water pan, return air filter mesh, control box and control panel etc.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Description:
Technical Data:
| Type | JTZK-1.5-B | JTZK-2-B | JTZK-3-B | JTZK-3.5-B | JTZK-4.7-B | JTZK-7-B | |
| Cooling capacity | Kw | 1.5 | 2 | 3 | 3.5 | 4.7 | 7 |
| Btu/hr | 5000 | 7000 | 10000 | 12000 | 16000 | 24000 | |
| Heating capacity | Kw | 1.65 | 2.2 | 3.3 | 3.85 | 5.17 | 7.7 |
| Btu/hr | 5500 | 7700 | 11000 | 13200 | 17600 | 26400 | |
| Refrigerant | R22 | ||||||
| Power supply | 220V 50Hz 1Φ | ||||||
| Total Power KW | 0.75/0.88 | 0.9/1.03 | 1.1/1.23 | 1.3/1.45 | 1.5/1.67 | 2.2/2.35 | |
| Current A | 4.5/5.28 | 5.4/6.18 | 6.6/7.38 | 7.8/8.7 | 9/10.02 | 13.2/14.1 | |
| Cooling sea water inlet temp. | ℃ | Cooling≤32℃, heating≥8℃ | |||||
| sea water flow | m3/h | 0.38 | 0.51 | 0.76 | 0.89 | 1.2 | 1.8 |
| Dimension | L mm | 450 | 450 | 515 | 515 | 550 | 630 |
| W mm | 295 | 295 | 315 | 315 | 340 | 400 | |
| H mm | 325 | 325 | 335 | 340 | 385 | 460 | |
| M mm | 0 | 0 | 0 | 0 | 0 | 96 | |
| Weight kg | 27 | 30 | 34 | 39 | 42 | 65 | |
