Single face/non-balanced/arbitrary rotation/tetrafluorine bellows
This series is classified as tetrafluoroethylene bellows type, which adopts the multi-spring structure, among which the FBD type spring is protected by the tetrafluoroethylene cover.This type of machine seal is the most widely used in corrosion - resistant pumps.
The scope of work
Specification: 16 ~ 120 mm
Pressure: 1.2 Mpa or less
Temperature: - 20 ℃ ~ 150 ℃
Linear velocity: ≤10m/s
Axial cross momentum: ±1.0mm
Sealing face: graphite, silicon carbide, tungsten carbide, alumina
Auxiliary seal: nitrile rubber, fluorine rubber, ethylene - c rubber
Metal components: stainless steel
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Pump Motor And Accessories

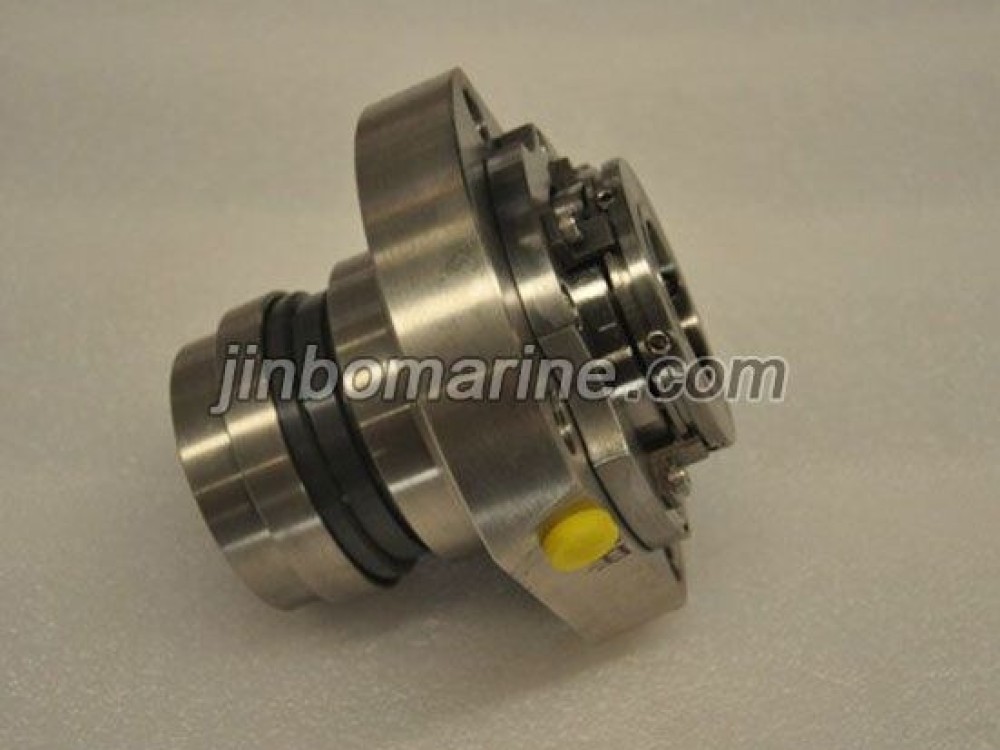

KCB-300 2CY-18/0.36 mechanical seal marine pump spares
Single face/non-balanced/arbitrary rotation/tetrafluorine bellows This series is classified as tetrafluoroethylene bellows type, which adopts the multi-spring structure, among which the FBD type spring is protected by t...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Pump Motor And Accessories
Standard
CB
Material
stainless steel
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Pump Motor And Accessories
Model / SKU
KCB-300-2CY-18-0-36-mechanical-seal-marine-pump-spares
Standard
CB
Material
stainless steel
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
