LR Series Gear Pump is used for transferring N32 or N46 refrigerated lubricating and lubricant oil, temperature range from 10℃ to 80 ℃
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Gear Pump

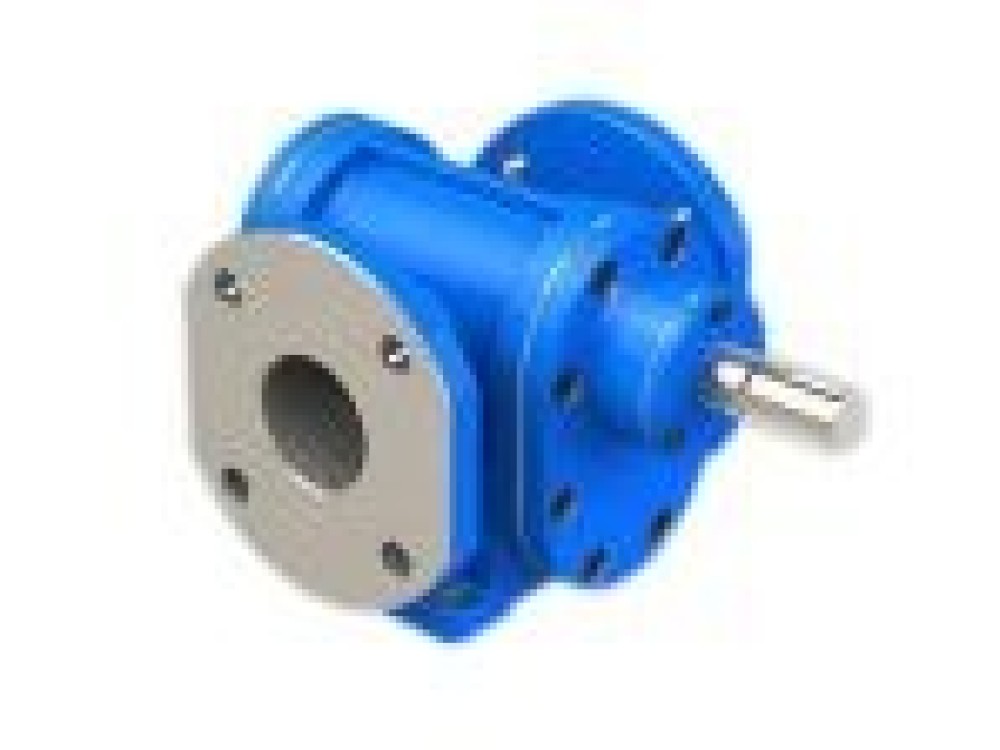

LB Series Gear Pump for Refrigrator
LR Series Gear Pump is used for transferring N32 or N46 refrigerated lubricating and lubricant oil, temperature range from 10℃ to 80 ℃ Main Specification Type ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Gear Pump
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Gear Pump
Model / SKU
LB-Series-Gear-Pump-for-Refrigrator
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China LB Series Gear Pump for Refrigrator:
Main Specification
| Type | Suction/Extrude Port Diameter | Capacity | Differential Pressure | Max. Discharge Pressure | Motor Power | Motor Speed | Motor Model | |
|---|---|---|---|---|---|---|---|---|
| mm | m3/h | L/min | Mpa | Mpa | kw | r/min | ||
| LB1.8 | 20 | 1.8 | 30 | 0.5 | 2.5 | 0.55 | 1390 | Y801-4 |
| LB3.6 | 25 | 3.6 | 60 | 0.5 | 2.5 | 1.1 | 910 | Y90L-6 |
| LB10 | 40 | 10 | 166.7 | 0.5 | 2.5 | 3 | 1420 | Y100L2-4 |
| LB12 | 40 | 12 | 200 | 0.5 | 2.5 | 3 | 1420 | Y100L2-4 |
| LB20 | 80 | 20 | 333.3 | 0.5 | 2.5 | 5.5 | 960 | Y132M2-6 |
| LB25 | 80 | 25 | 416.7 | 0.5 | 2.5 | 7.5 | 970 | Y160M-6 |
| LB40 | 100 | 40 | 666.7 | 0.5 | 2.5 | 11 | 970 | Y160L-6 |
