Product Datasheet
Marine Transformers

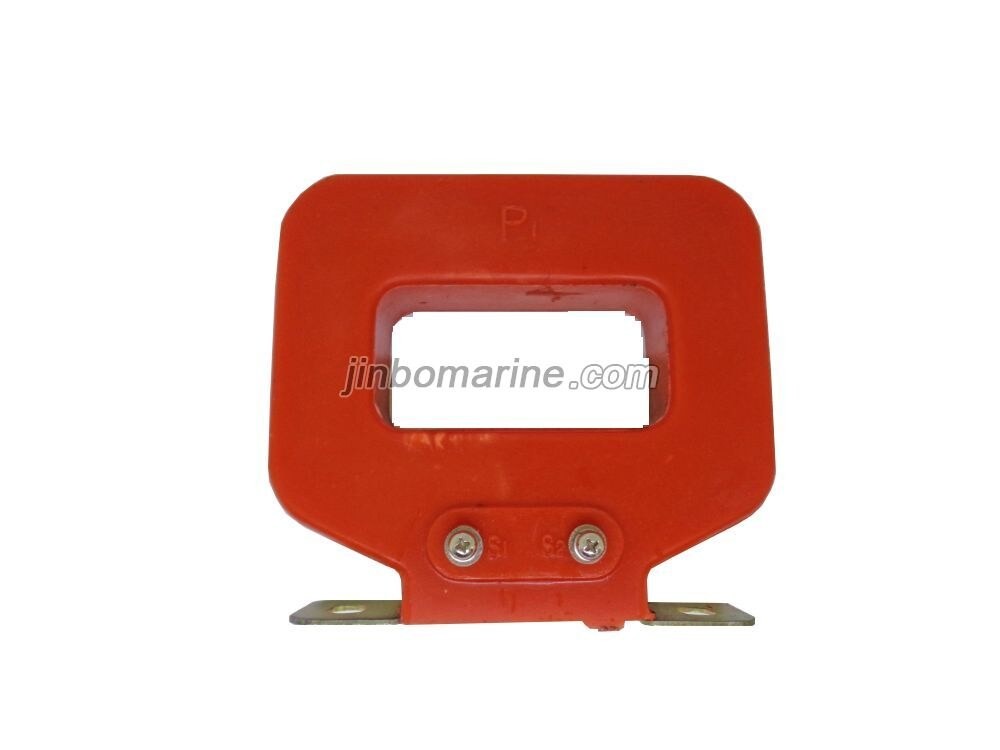

LMZJ1-0.5TH 1000-5000/5A Marine Current Transformer
Transformer Definition Transformer, instrument transformer), also known as instrument transformer, current transformer and voltage transformer is a general designation to high voltage to low voltage, large current ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Transformers
Standard
GB
Weight / Size
GB20840, IEC61869 LMZJ1-0.5TH 1000-5000/5A Marine Current Transformer Pa...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Transformers
Model / SKU
LMZJ1-0-5TH-1000-5000-5A-Marine-Current-Transformer
Standard
GB
Weight / Size
GB20840, IEC61869 LMZJ1-0.5TH 1000-5000/5A Marine Current Transformer Parameters Rated Primary Current Size A C D H h L B B1 1000-1200/5A 170 50 100 152 90 120 45 56 1500-2000/5A 195 50 120 152 90 120 45 56 3000-4000/5S 216 70 140 175 102 150 46 56 5000/5A 245 88 150 220 128 180 55 64
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Transformer Definition
LMZJ1-0.5TH 1000-5000/5A Marine Current Transformer
1.Application: mainly used for electric power, electrical line voltage measurement,overload protection, intercept signal.
2.Working temperature: -40℃~+40℃
3.Rated voltage: 0..5KV
4.Rated frequency: 50/60 HZ
5.Rated primary voltage:5~8000kv
6. Rated secondary voltage: 1~5A
7.Rated secondary load: 2.5~50VA
8.Accurate level: 5P,10P
9:Standard: GB20840, IEC61869
LMZJ1-0.5TH 1000-5000/5A Marine Current Transformer Parameters
| Rated Primary Current | Size | ||||||||
| A | C | D | H | h | L | B | B1 | ||
| 1000-1200/5A | 170 | 50 | 100 | 152 | 90 | 120 | 45 | 56 | |
| 1500-2000/5A | 195 | 50 | 120 | 152 | 90 | 120 | 45 | 56 | |
| 3000-4000/5S | 216 | 70 | 140 | 175 | 102 | 150 | 46 | 56 | |
| 5000/5A | 245 | 88 | 150 | 220 | 128 | 180 | 55 | 64 | |
