LXJ Model Fore Peak Tank Anticollision Valve adopts spiral shutoff valve, it features reasonable structure,safe and reliable. It is installed in the anticollision bulkhead of fore peak tank, immersed in the sea water for the control of ballast pipe of fore peak tank, suitable for ballast water control of bulk carrier or other kinds of ships.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Measurement And Control Device

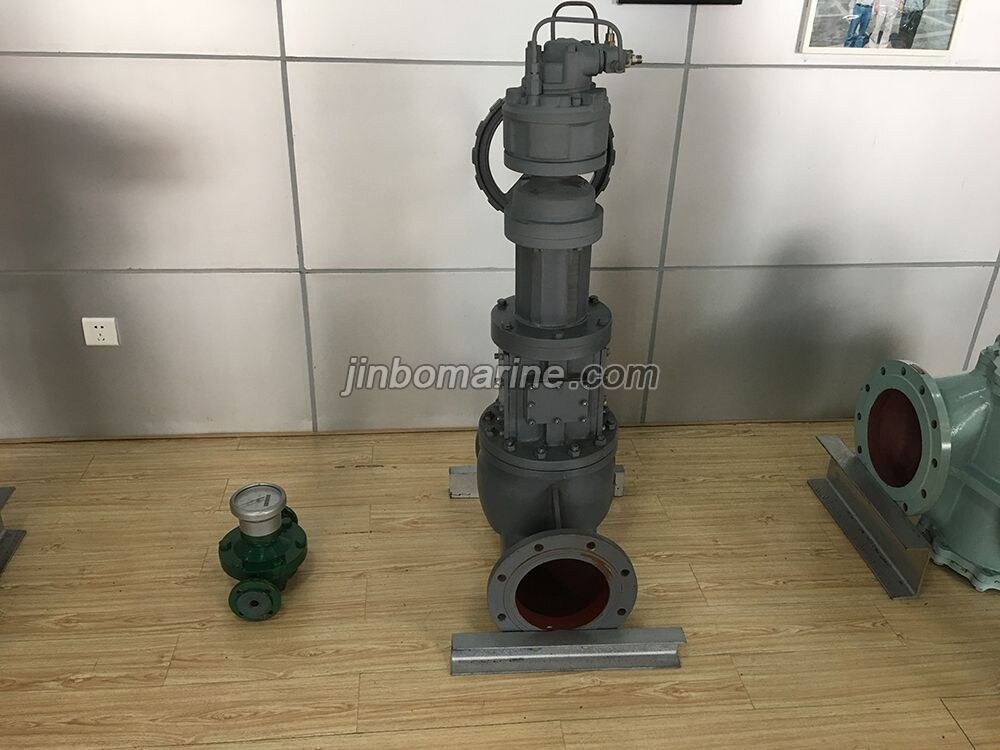

LXJ Model Fore Peak Tank Anticollision Valve
Product Description: LXJ Model Fore Peak Tank Anticollision Valve adopts spiral shutoff valve, it features reasonable structure,safe and reliable. It is installed in the anticollision bulkhead of fore peak tank, im...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Measurement And Control Device
Standard
GB
Material
GB2506-2005 House material:
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Measurement And Control Device
Model / SKU
LXJ-Model-Fore-Peak-Tank-Anticollision-Valve
Standard
GB
Material
GB2506-2005 House material:
Surface
The inside and outside surface of housing is epoxy paint.
Certificate
CCS,GL,LR,BV,ABS,DNV GL,RINA,NK,KR ETC.
Warranty
12 Months unless specified otherwise
Origin
China
Product Description:
Main Technical Specification:
Nominal diameter: DN50, DN 65.DN80.DN100.DN120.DN125.DN150.DN200.DN250.DN300.DN350.DN400.
Nominal pressure:0.6Mpa
Connection flange standard: GB2506-2005
House material: cast steel.
The inside and outside surface of housing is epoxy paint.
Installation type: dry installation, immersion installation.
Vavle position indicator, local indicator, remote signal output.
Structure Principle:
Total 3 types: manual , hydraulic or electric.
