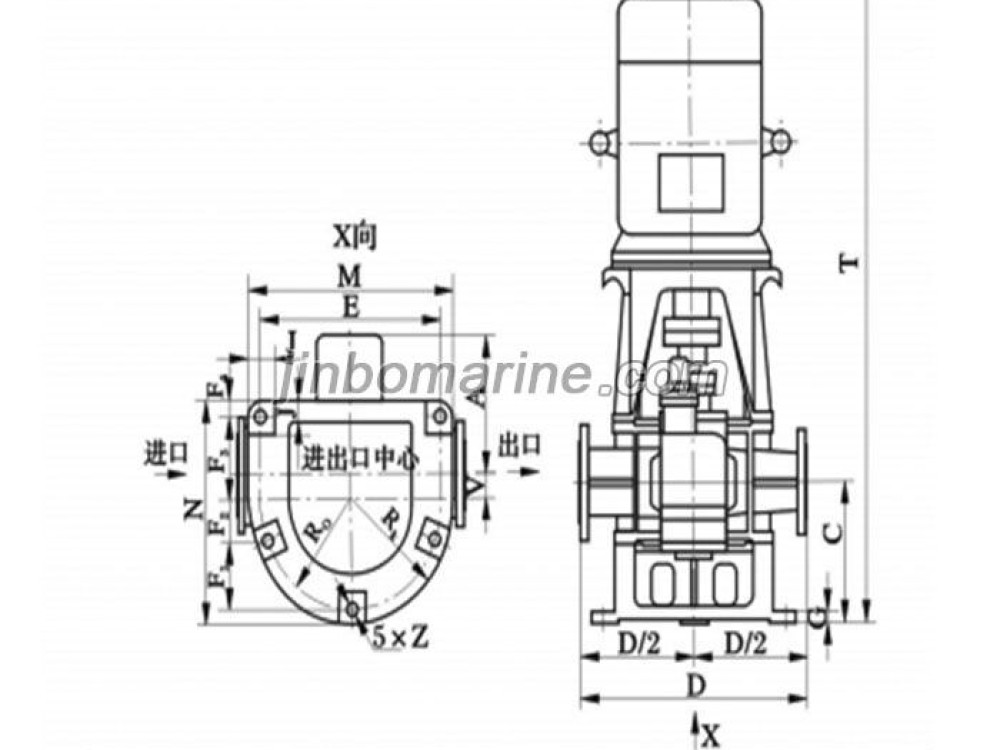

LYB Series Circular Gear Pump are mainly consist of gear, shaft, pump body, pump cover, shaft end seal, bearing, etc. The circular arc gear pump has a stable performance, low noise, long life, high efficiency.
Application
Type：Vertical Installed Pump for Ship
Characteristic：It has characteristics of steady operating, low noise, long life and high efficiency.
Temperature：The max. environment temperature is 50℃，the max. use environment temperature is 80℃.
Axle Seal：This series of pump adopt mechanical sealing. It also adopts then filling seal according to the requirement of customer.
| Type | Diameter | Capacity(m3/h) | Pressure | |||
| Inlet/Outlet | 60HZ | 50HZ | Mpa | |||
| 1180rpm | 900rpm | 970rpm | 720rpm | |||
| LYB0.6 | 25x25 | 0.72 | - | 0.6 | - | 0.6 |
| LYB1.6 | 32x32 | 1.92 | - | 1.6 | - | |
| LYB10 | 65x65 | 12 | - | 10 | - | |
| LYB20 | 100x80 | 24 | - | 20 | - | |
| LYB25 | 30 | - | 25 | - | ||
| LYB30 | 125x100 | 36 | - | 30 | - | |
| LYB40 | 150x125 | 48 | - | 40 | - | |
| LYB50 | 61 | - | 50 | - | ||
| LYB65 | 150x125 | - | 65 | - | 55 | |
| LYB80 | - | 80 | - | 65 | ||
| LYB90 | - | 90 | - | 75 | ||
| LYB100 | 200x150 | - | 100 | - | 85 | |
