LYNSB Ultrasonic gas flowmeter is China National Key Technologies R&D Program of 863, and it's high-value product researched and developed by Yinuo with Independent Intellectual Property Rights. It gets an invention patent and a practical new-type patent. It can be extensively applied to the supply, transmission, distribution of most dry gas in fields such as underground air storage, power stations, petrochemical industry, aluminum melters etc. A wide range of gas can be measured by LYNSB in eluding natural gas, compact gas, air, fuel gas, corrosive gas, poisonous gas, high-pure gas, etc.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Flow Meter

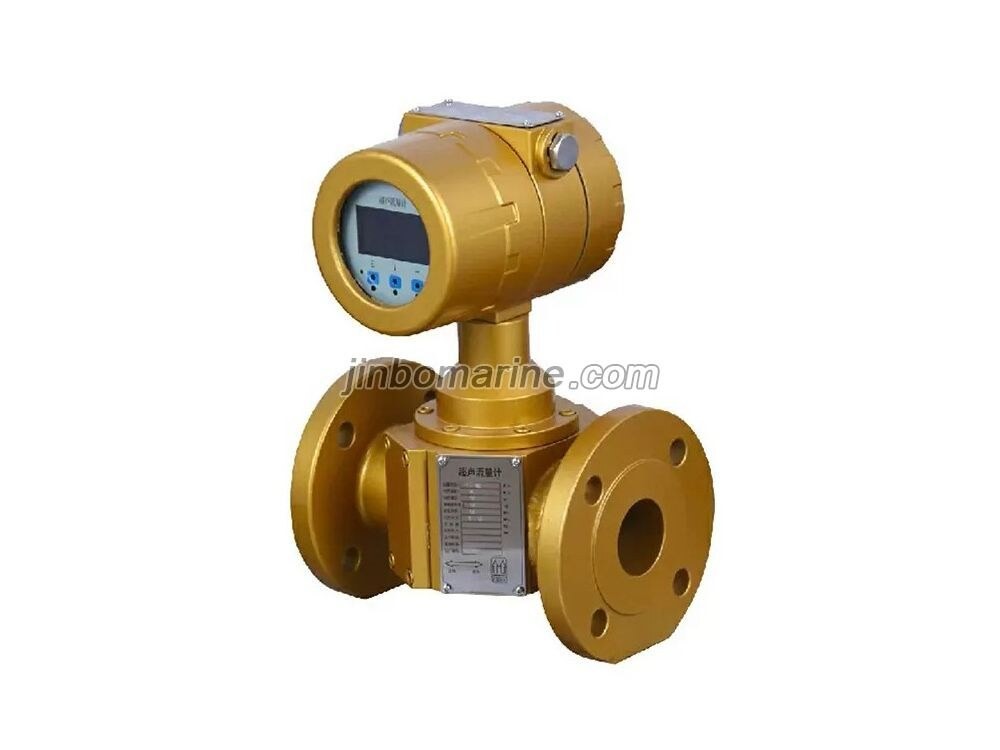

LYNSB Ultrasonic Gas Flowmeter
Description LYNSB Ultrasonic gas flowmeter is China National Key Technologies R&D Program of 863, and it's high-value product researched and developed by Yinuo with Independent Intellectual Property Rights. It get...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Flow Meter
Standard
ISO
Weight / Size
Temperature and pressure compensation. Suitable for small flowrate and ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Flow Meter
Model / SKU
LYNSB-Ultrasonic-Gas-Flowmeter
Standard
ISO
Weight / Size
Temperature and pressure compensation. Suitable for small flowrate and large size pipe. Specification Accuracy ±0.5%, ±1.0%, ±1.5% Diameter DN25mm~DN300mm Turndown Ratio >1:30 Medium Gas, liquid Output Signal Pulse, 4~20mA Communication Protocol MODBUS Protocol Ex-proof Common type, Ex-proof type Protection IP65 Ex-proof Grade Exdib II BT4(GYB101058) Working Temp.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Description
Feature
NO moving parts, low pressure drop, long life span.
Bi-directional measurement.
Simple installation, easy maintenance,
High accuracy and good reliability.
Ex-proof: Exd(ib)IIBT4(exclude ecetylene).
Temperature and pressure compensation.
Suitable for small flowrate and large size pipe.
Bi-directional measurement.
Simple installation, easy maintenance,
High accuracy and good reliability.
Ex-proof: Exd(ib)IIBT4(exclude ecetylene).
Temperature and pressure compensation.
Suitable for small flowrate and large size pipe.
Specification
| Accuracy | ±0.5%, ±1.0%, ±1.5% |
| Diameter | DN25mm~DN300mm |
| Turndown Ratio | >1:30 |
| Medium | Gas, liquid |
| Output Signal | Pulse, 4~20mA |
| Communication Protocol | MODBUS Protocol |
| Ex-proof | Common type, Ex-proof type |
| Protection | IP65 |
| Ex-proof Grade | Exdib II BT4(GYB101058) |
| Working Temp. | -40ºC ~+85ºC |
| Max. Overload Flowrate | 120% |
| Power Supply | DC 24V (600mA), DC12V(1A) |
| Nominal Pressure | 1.6MPa ,2.5MPa,4.0MPa,6.3MPa, 10.0MPa,16MPa,25MPa, 42MPa |
