Pressure range: 0～1kPa 0～2.5kPa 0～7kPa
Accuracy: ≤1%FS
Output signal: 4～20mADC（2-wire）
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Pressure Instrument

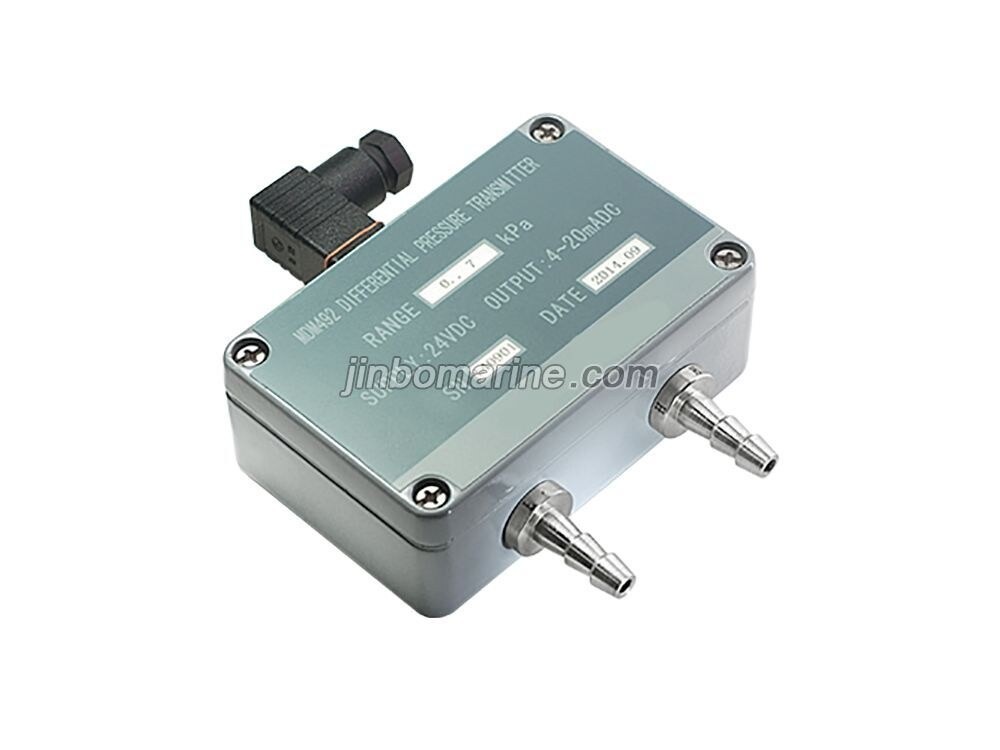

MDM492 Differential Pressure Transmitter
Pressure range: 0～1kPa 0～2.5kPa 0～7kPa Accuracy: ≤1%FS Output signal: 4～20mADC（2-wire） Features: Lower pressure measurement. Compact size, easy installation. The gas or non-conductive liquid me...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Pressure Instrument
Standard
EN
Material
stainless steel 1Cr18Ni9Ti Electric housing:
Weight / Size
Compact size, easy installation.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Pressure Instrument
Model / SKU
MDM492-Differential-Pressure-Transmitter
Standard
EN
Material
stainless steel 1Cr18Ni9Ti Electric housing:
Weight / Size
Compact size, easy installation.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China MDM492 Differential Pressure Transmitter:
Features:
Lower pressure measurement.
Compact size, easy installation.
The gas or non-conductive liquid measurement.
Introduction:
MDM492 differential pressure transmitter is used to measuring lower pressure range. It uses high performance sensor and amplifier circuit outputing 4~20mA current signal. The whole product is stable and reliable, can be used for lower pressure measure of boiler, vintage, engine and so on.
Specifications:
Pressure range: 0～1kPa 0～2.5kPa 0～7kPa
Overpressure: 3kPa 7.5kPa 21kPa
Limited pressure: 5kPa 12.5kPa 35kPa
Static pressure: 300kPa 300kPa 300kPa.
Accuracy: ≤1%FS
Long-term stability: ≤10Pa/year ≤25Pa/year ≤70Pa/year
Zero temp.drift: ≤±0.05kPa ≤±0.125kPa ≤±0.4kPa（0～70℃, @25℃）
FS temp.drift: ≤±0.02kPa ≤±0.05kPa ≤±0.14kPa（0～70℃, @25℃）
Media temp.: -10℃～85℃
Storage temp.: -40℃～125℃
Compensation temp.: 0℃～70℃
Relative humility: 0～80%
Power supply: 15～30VDC
Output signal: 4～20mADC（2-wire）
Pressure port: stainless steel 1Cr18Ni9Ti
Electric housing: aluminum-alloy
