Gasketed plate heat exchanger, compose of a series of corrugation plates, which is
enclosed by complete gasket, tightened together by tie rod. The metal plates with hoes for
two heat transfer fluid through. The plate and gasket material, size, quantity, etc are
determined by the medium flowrate, physical properties, pressure drop and temperature.
Optimization by mixing corrugated plates can improve heat transfer efficacy, optimize
pressure drop, require less heat transfer area which results in lower cost.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Water Treatment Equipment

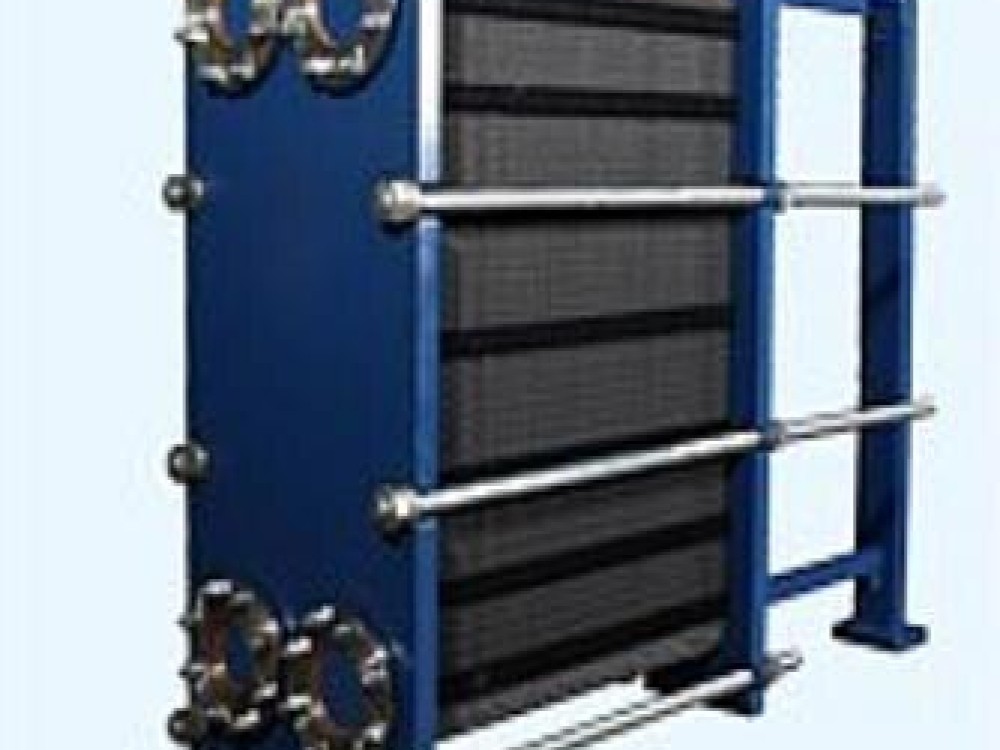

Maine Plate Heat Exchanger
Product Description: Gasketed plate heat exchanger, compose of a series of corrugation plates, which is enclosed by complete gasket, tightened together by tie rod. The metal plates with hoes for two heat transfe...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Water Treatment Equipment
Standard
EN
Material
The plate and gasket material, size, quantity, etc are determined by the...
Weight / Size
The plate and gasket material, size, quantity, etc are determined by the...
Certificate
DNV,LR,GL,ABS,BV,NK CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Water Treatment Equipment
Model / SKU
Maine-Plate-Heat-Exchanger
Standard
EN
Material
The plate and gasket material, size, quantity, etc are determined by the medium flowrate, physical properties, pressure drop and temperature.
Weight / Size
The plate and gasket material, size, quantity, etc are determined by the medium flowrate, physical properties, pressure drop and temperature.
Surface
painted
Certificate
DNV,LR,GL,ABS,BV,NK CCS
Warranty
12 Months unless specified otherwise
Origin
China
Product Description:
Standard Material:
Frame plate: Mild steel (Epoxy painted)
Flange: Carbon steel
Plates material: Stainless steel AISI 304, 316L TA1, Titanium palladium, Nickel
Gasket material: NBR, FPDM, Butyl, Viton(TP), Viton(FPM)
Our product feature:
a. Efficient heat transfer
b. High temperature gasket
c. Suitable for seawater, oil, steam, chemicals and so on
d. Compact and robust design
e. Plate can be added or removed
