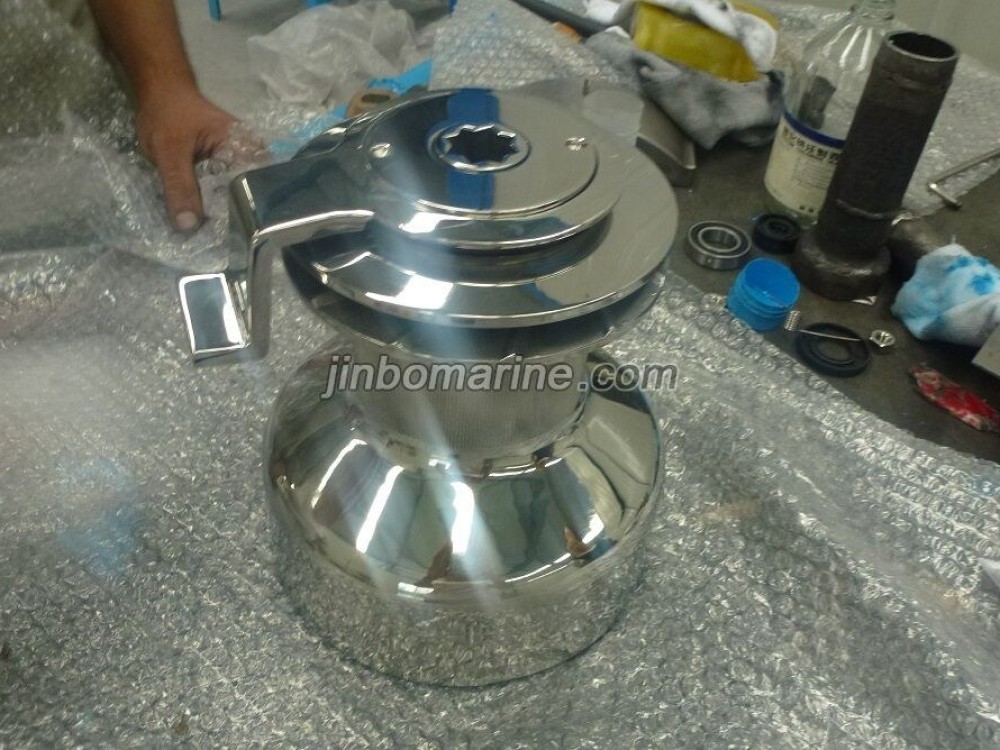

Manual Sailing winch are designed for boatbuilders and sailors. Winches feather mirror-polished drums with stainless steel tops, self-sailing jaws. And we've completely covered the winch tops so clothing or fingers don't get caught in moving parts. Available in 1or 2 speed self-sailing styles.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Yacht Windlass & Winch
Manual Sailing Winch
Manual Sailing Winch General description Manual Sailing winch are designed for boatbuilders and sailors. Winches feather mirror-polished drums with stainless steel tops, self-sailing jaws. And we've complet...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Yacht Windlass & Winch
Standard
EN
Material
Stainless steel 304,316, 316L
Weight / Size
Specifications Model Gear Ratio Power Ration SWL (KG) Weight(kg) Drum Ba...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Yacht Windlass & Winch
Model / SKU
Manual-Sailing-Winch
Standard
EN
Material
Stainless steel 304,316, 316L
Weight / Size
Specifications Model Gear Ratio Power Ration SWL (KG) Weight(kg) Drum Base Line Height 1st 2nd 1st 2nd Dia Dia Size (mm) (mm) (mm) (mm) YDSW-001 2:1 16:1 570 3.8 65.7 121 8-12 115 YDSW-002 2:1 4.5:1 14.2:1 29:1 690 5.5 74 138 8-12 145.5 YDSW-003 1.8:1 6:1 13.5:1 40.5:1 790 6.5 74 148 8-12 158.5 YDSW-004 2.5:1 7.8:1 13.8:1 44.6:1 1200 9.8 87 168 8-14 177.7 YDSW-005 2.8:1 9.2:1 13.8:1 48.8:1 1250 12.3 93 181 8-14 196.8 YDSW-006 3:1 11.5:1 13.9:1 55:1 1480 17.2 105 205 8-16 237.5 YDSW-007 3.2:1 15:1 13.5:1 65:1 1700 23.5 118 231 8-18 253.5 Feathers:
Surface
No tools are required to service the winches Gripping surface drum:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Manual Sailing Winch
General description
Specifications
| Model | Gear Ratio | Power Ration | SWL (KG) | Weight(kg) | Drum | Base | Line | Height | ||
| 1st | 2nd | 1st | 2nd | Dia | Dia | Size | ||||
| (mm) | (mm) | (mm) | (mm) | |||||||
| YDSW-001 | 2:1 | 16:1 | 570 | 3.8 | 65.7 | 121 | 8-12 | 115 | ||
| YDSW-002 | 2:1 | 4.5:1 | 14.2:1 | 29:1 | 690 | 5.5 | 74 | 138 | 8-12 | 145.5 |
| YDSW-003 | 1.8:1 | 6:1 | 13.5:1 | 40.5:1 | 790 | 6.5 | 74 | 148 | 8-12 | 158.5 |
| YDSW-004 | 2.5:1 | 7.8:1 | 13.8:1 | 44.6:1 | 1200 | 9.8 | 87 | 168 | 8-14 | 177.7 |
| YDSW-005 | 2.8:1 | 9.2:1 | 13.8:1 | 48.8:1 | 1250 | 12.3 | 93 | 181 | 8-14 | 196.8 |
| YDSW-006 | 3:1 | 11.5:1 | 13.9:1 | 55:1 | 1480 | 17.2 | 105 | 205 | 8-16 | 237.5 |
| YDSW-007 | 3.2:1 | 15:1 | 13.5:1 | 65:1 | 1700 | 23.5 | 118 | 231 | 8-18 | 253.5 |
Feathers:
Simple servicing: No tools are required to service the winches
Gripping surface drum: The drum's gripping surface is shaped for each winch size and drum material and features ribs to maximize gripping power and greatly reduce line wear.
Whole Mirror-polished: The whole winch mirror-polished, whole stainless steel
Wave spring jaw and feeder arm: The cast stainless steel feeder arm position can be adjusted to smoothly feed the rope out of the jaws and into the cockpit.
