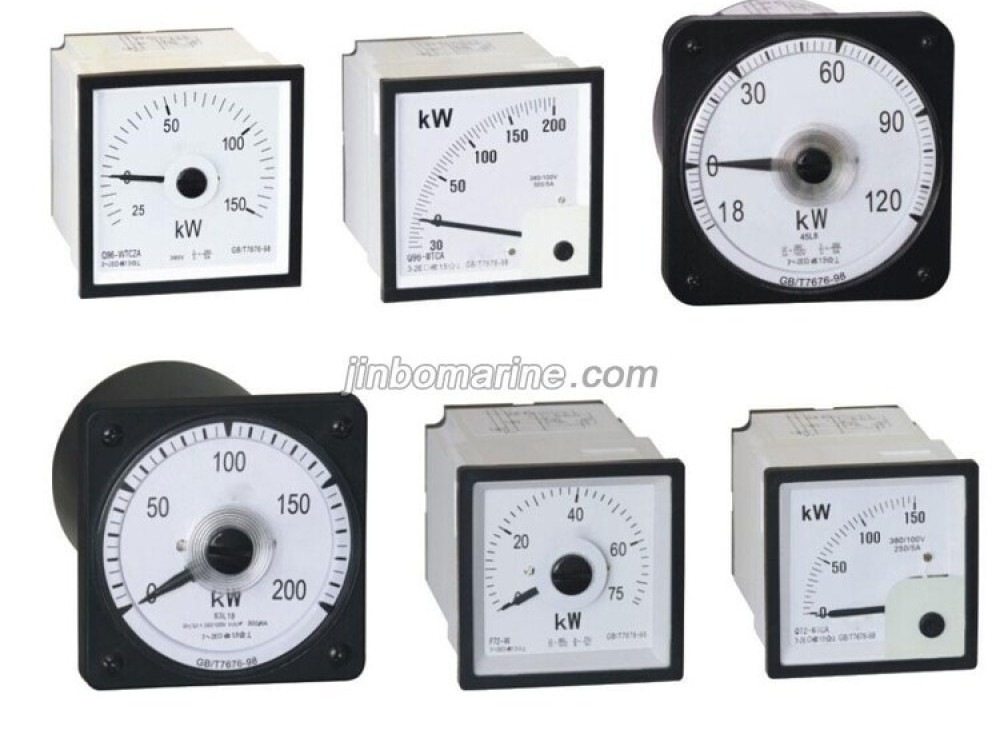

Single Phase Marine Active Power Meter,Three Phase Marine Active Power Meter. (240 degree,90 degree,grade 1.5)
| Model of wide angle meter | Model of right angle meter | Measuring range | Remark |
AH72-W
F7Z-W
Q72-WTCZA
61L14-W
LS-72
Integration | AH72-WB
F7Z-WB
Q72-WTCA
61L13-W
DN72
Integration | Power | Voltage |
800W-2000W
0.8-3000W
1MW-600MW | 220V | Voltage can be directly connected
Current connect through CT/5A |
| 380V |
| 440V |
380V/100V
380-110KV | Voltage can be connect through PT/100V
Current connect through CT/5A |
Its structure is magnetic electric tension string supporting and pivot needle type structure.
Rotating part no friction,work reliable,high mechanical shock resistance.Vibration will be proceed under the condition of acceleration 0.7g. Due to the mobile part of ivot needle adopt spring bearing support which can reduce the shock and vibration, pivot needle and bearing consists of high hardness cobalt-tungsten and barklyite,vibration can be proceed under the condition of acceleration 0.7g.
Advanced converter line and Indicating device integration structure,the instrument is high accuracy and large angle.The meter have linear scale,and won't affect by the magnetic filed outside,all adopt printed dial,colorized dial,scale is very clear,look neat and beautiful.Null meter reading instrument all have zero button,easy to adjust.
The deflection angle of Q96,F96,F96J,51L5,51T5,51C5,Z96,LS-96 Pointer needle is wide angle(240 to 250 degree) ,the meter is tension string structure,import of German technology,rotation no friction,shock assistance is better. Hairspring structure import of Taiwan technology,shock assistance is good,also can be produce to right angle 90 degree deflection angle.
The deflection angle of 51C4,51L4,51T4,51C6,51T6 Pointer needle is right angle(90 degree),also can be extend to wide angle(240 degree) deflection angle.(need to confirm when you place order) (96x96mm)
Q/F 96 type wide angle meter,overall size 96x96mm, hole size 92x92mm,depth dimensions 108mm.
Q/F 96 type right angle meter,overall size 96x96mm, hole size 92x92mm,depth dimensions 108mm.
