Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Air Conditioner

Marine Air-conditioner System

Model MPAC- MPAC- MPAC- MPAC- MPAC- Cooling capacity(kw) 10.46 ...

ISO9001 Supplier Class Certificate Export Supply

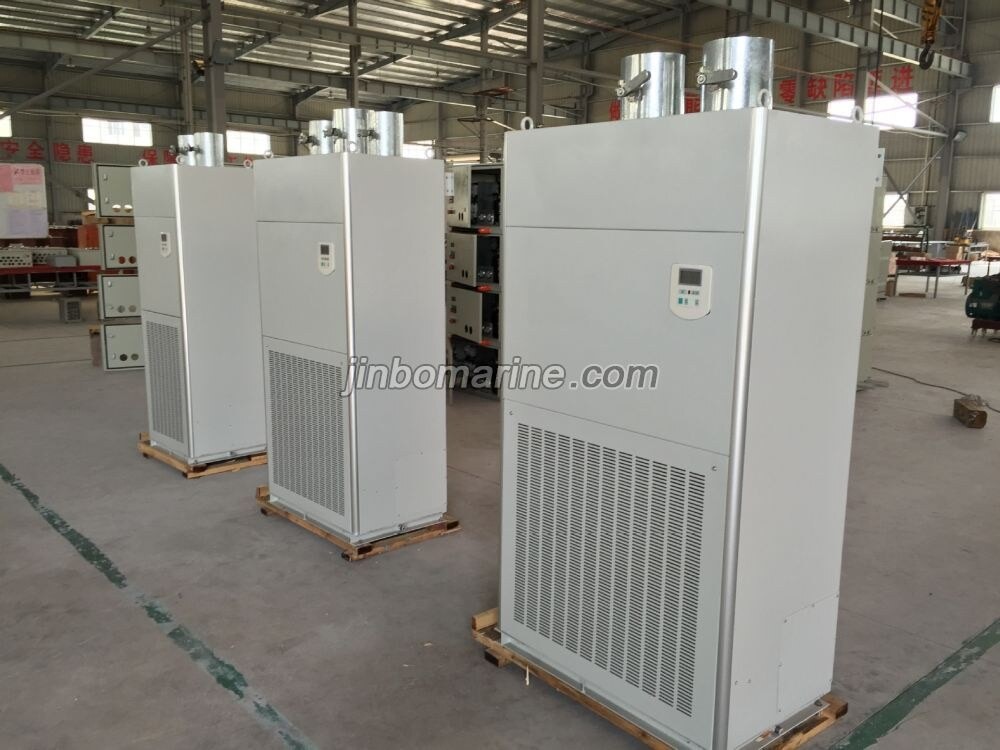

Marine Air-conditioner System

Key Highlights

Category
Marine Air Conditioner
Standard
EN
Weight / Size
Length(mm) 718 810 900 900 1100 Width(mm) 490 500 535 535 600 Hight（mm) ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Air Conditioner
Model / SKU
Marine-Air-conditioner-System
Standard
EN
Weight / Size
Length(mm) 718 810 900 900 1100 Width(mm) 490 500 535 535 600 Hight（mm) 1575 1575 1575 1575 1575 Net weight(kg) 310 320 360 400 480
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Marine Air-conditioner System:

Model MPAC- MPAC- MPAC- MPAC- MPAC-
Cooling
capacity(kw) 		10.46 11.6 14.4 17.44 22.6
Refrigerant R22(R404)
Power supply AC380V 3PH 50HZ
Compressor Hermtic
Condenser Horizontal shell and tube, aluminum brass tube
Evaporator Copper tube with copper fin
Power of low noise centrifugal fan(kw) 0.16 0.16 0.55 0.55 2*0.16
Protections High pressure, low pressure, oil pressure, water-break,
antifreezing, phase loss, overload ,safety valve etc.
Length(mm) 718 810 900 900 1100
Width(mm) 490 500 535 535 600
Hight（mm) 1575 1575 1575 1575 1575
Net weight(kg) 310 320 360 400 480
