Nitrogen Generator System

Marine Anti Explosion PSA Nitrogen Generator

As an excellent inert gas, nitrogen is used more and more widely in many fields. At present, there are many nitrogen making technologies adopted in the world. This is a compressed air purification treatment, using nit...

ISO9001 Supplier Class Certificate Export Supply
Marine Anti Explosion PSA Nitrogen Generator

Key Highlights

Category
Nitrogen Generator System
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Nitrogen Generator System
Model / SKU
Marine-Anti-Explosion-PSA-Nitrogen-Generator
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Contents
  1. China Marine Anti Explosion PSA Nitrogen Generator:
  2. Technical index:
  3. Marine Anti Explosion PSA Nitrogen Generator Main Specification

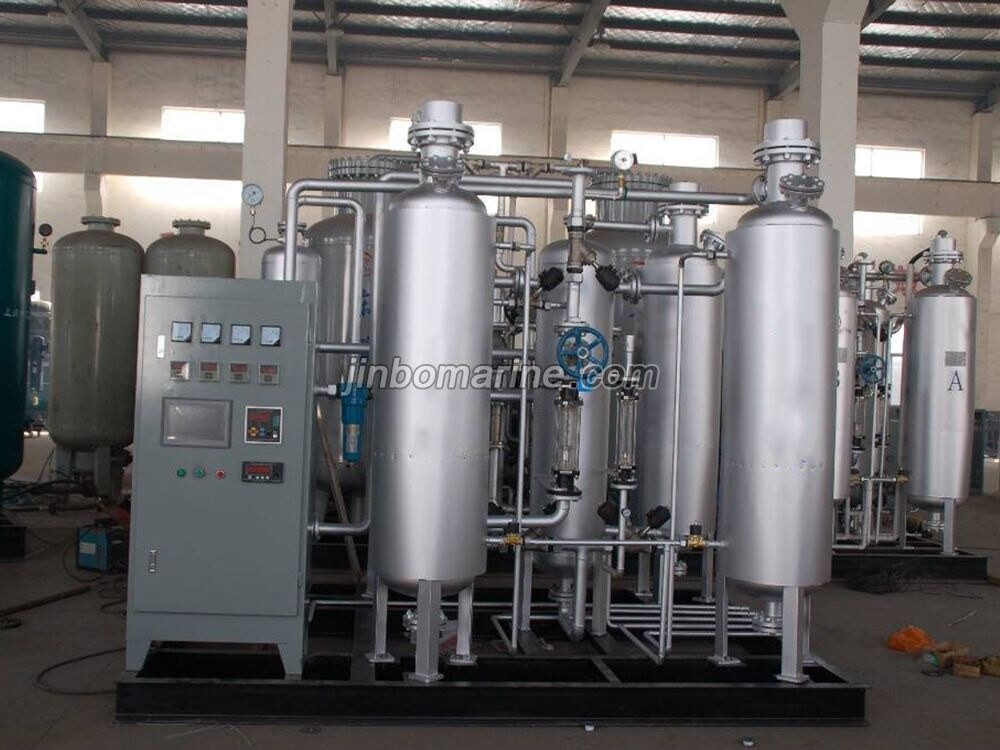

China Marine Anti Explosion PSA Nitrogen Generator:

As an excellent inert gas, nitrogen is used more and more widely in many fields. At present, there are many nitrogen making technologies adopted in the world. This is a compressed air purification treatment, using nitrogen and oxygen molecules are not the same in the state of motion of polymer hollow fiber tube they separated device to make the nitrogen concentration to use certain requirements for storage or for direct use. Nitrogen purity not less than 97%.

Nitrogen making machine is mainly used for large ships, oil tankers, liquefied gas vessels, chemical tankers, refrigerated transport vessels and other types of ships, drilling platform explosion suppression, anti-burning anti corrosion and storage; for oxygen and chemical explosion; smelting, mechanical and electrical for oxygen barrier protection for gas storage and warehouse.

Technical index:

Flow rate: 5-1000Nm3/h

Purity: 95%-99.9995%

Dew point: less than -40℃

Pressure: less than 0.8Mpa (Adjustable)

Marine Anti Explosion PSA Nitrogen Generator Main Specification

Model Purity(%) Capacity(Nm3/hr) Model Purity(%) Capacity(Nm3/hr)
TCN95-3 95 3 TCN95-30 95 30
TCN98-3 98 TCN98-30 98
TCN29-3 99 TCN29-30 99
TCN295-3 99.5 TCN295-30 99.5
TCN39-3 99.9 TCN39-30 99.9
TCN49-3 99.99 TCN49-30 99.99
TCN59-3 99.999 TCN59-30 99.999
TCN95-5 95 5 TCN95-40 95 40
TCN98-5 98 TCN98-40 98
TCN29-5 99 TCN29-40 99
TCN295-5 99.5 TCN295-40 99.5
TCN39-5 99.9 TCN39-40 99.9
TCN49-5 99.99 TCN49-40 99.99
TCN59-5 99.999 TCN59-40 99.999
TCN95-10 95 10 TCN95-50 95 50
TCN98-10 98 TCN98-50 98
TCN29-10 99 TCN29-50 99
TCN295-10 99.5 TCN295-50 99.5
TCN39-10 99.9 TCN39-50 99.9
TCN49-10 99.99 TCN49-50 99.99
TCN59-10 99.999 TCN59-50 99.999
TCN95-20 95 20 TCN95-100 95 100
TCN98-20 98 TCN98-100 98
TCN29-20 99 TCN29-100 99
TCN295-20 99.5 TCN295-100 99.5
TCN39-20 99.9 TCN39-100 99.9
TCN49-20 99.99 TCN49-100 99.99
TCN59-20 99.999 TCN59-100 99.999
