Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Optical Instrument

Marine Binocular

Different price levels Marine Binocular available. Wateproof. The most popular type parameter: MAGNIFICATION: 7X OBJ.LENS DIA.: 50mm FIELD OF ANGLE 6 TYPE OF PRISM: Porro Prism ...

ISO9001 Supplier Class Certificate Export Supply

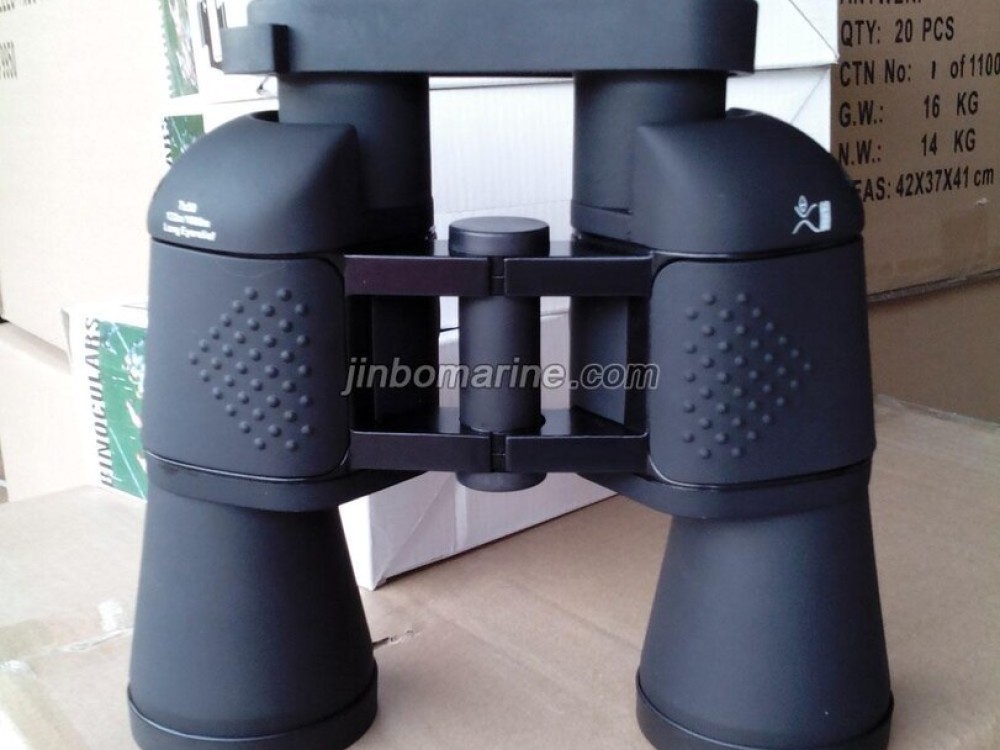

Marine Binocular

Key Highlights

Category
Marine Optical Instrument
Standard
EN
Weight / Size
NO Product size :
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Optical Instrument
Model / SKU
Marine-Binocular
Standard
EN
Weight / Size
NO Product size :
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Marine Binocular:

Different price levels Marine Binocular available.

Wateproof.

The most popular type parameter:

MAGNIFICATION: 7X

OBJ.LENS DIA.: 50mm

FIELD OF ANGLE 6

TYPE OF PRISM: Porro Prism

PRISM COATING: yes

NUMBER OF LENS: 5 pieces 3groups
EXIT PUPIL DIAMETER: 6.44mm

EXIT PUPIL DIST.: 24.2mm

FIELD OF VIEW: 6.8 degree , 357 foot per 1000 yards , 119m/1000m

MIN.FOCAL LENGTH: 20m

RELATIVE BRIGHTNESS: 41.5

TWLIGHT INDEX: 17.8

RESOLUTION: ≤5"

INTERPUPILLARY DIST.: 56mm~72mm

NITROGEN FILLED: NO

Product size : 175x65x172mm
