Clear View Screen
Marine Clear View Screen has the feature of removing the rain, snow and sea water from the window with the centrifugal force generated from the high speed rotation of glass driven by the motor, keep c
Marine Clear View Screen made of double layer glass structure for preventing rain and water, better visual field under normal condition. Marine Clear View is suitable for oil tankers, chemical tankers and high speed naval ships.
Ship Clear View Screen has the feature of removing the rain, snow and sea water from the window with the centrifugal force generated from the high speed rotation of glass driven by the motor, keep clear vision.
Voltage: AC220V, AC110V, DC24V
Frequency: 50Hz/60Hz
Input Power:
Motor Power <=90W
Heater Power <=250W
Protection Grade:
Outdoor IP56 Indoor IP22
Thickness of Mounting Wall:10-22mm
Main Model
| External Diameter (mm) | Diameter of transparent glass (mm) | Dimension of mounting wall (mm) | Weight (kgs) |
| 370 | 300 | 341 | 10.5 |
| 420 | 350 | 391 | 12.5 |

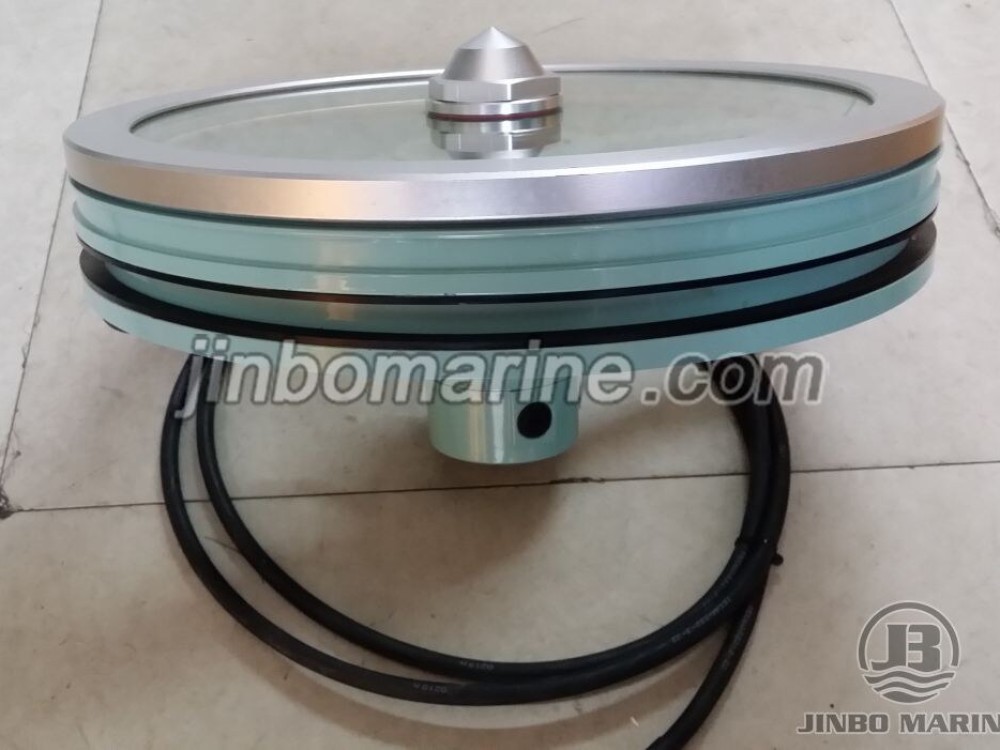

300mm Marine Clear View Screen, Glass thickness 8mm
