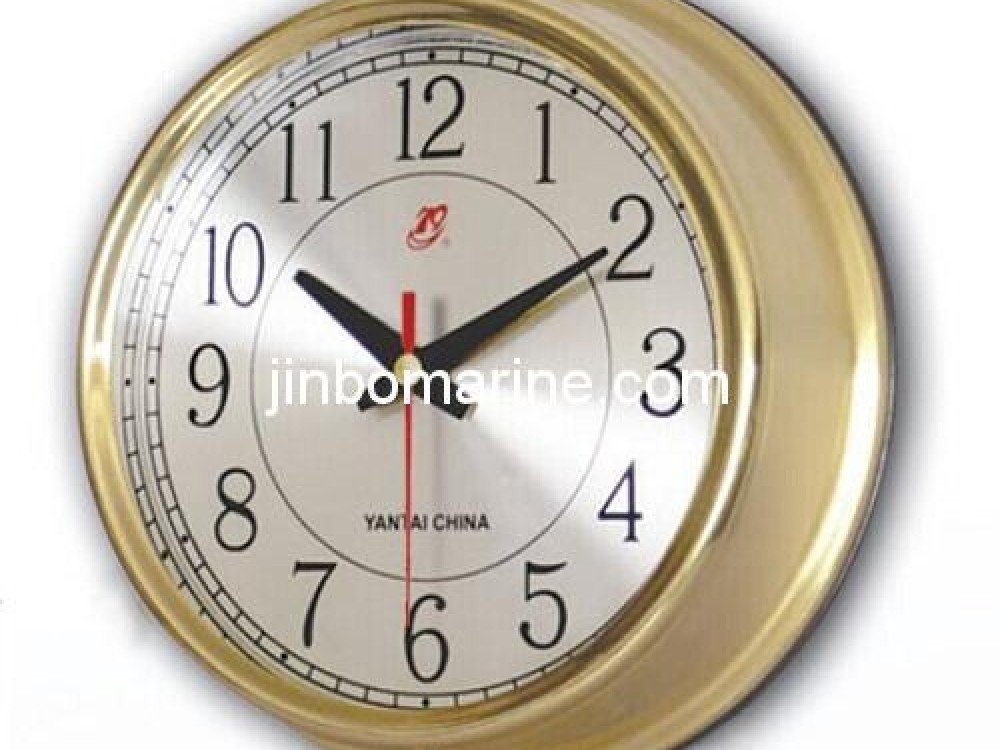

Marine Clock (12hours)
Material: Brass
Showing Surface Diameter: 150mm/170mm
Size: 208/228mm*60mm
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Chromoneter & Clock
Marine Clock
Marine Clock (12hours) Material: Brass Showing Surface Diameter: 150mm/170mm Size: 208/228mm*60mm Specifications: 1. Oscillator: NDK 4.194304MHz 2. Integrated circuit:Pulse Dura...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Chromoneter & Clock
Standard
EN
Material
Brass
Weight / Size
150mm/170mm Size:
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Chromoneter & Clock
Model / SKU
Marine-Clock
Standard
EN
Material
Brass
Weight / Size
150mm/170mm Size:
Surface
Brass Showing Surface Diameter:
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China
China Marine Clock:
Specifications:
1. Oscillator: NDK 4.194304MHz
2. Integrated circuit:Pulse Duration:46.875ms, Qutput Frequency: 0.5Hz
3. Transducer System: bipolar eccentric step motor
4. Torque on minute hand:≥8×10-3Nm
5. Time Keeping Accuracy:≤10s/month at -24±3ºC
6. Operating Temperature Range:-10～50ºC
7. Temperature Coefficent:≤±0.02s/ºC at-10～50ºC
8. Battery Life: over one year (battery size UM+2)
9. Resistance to vibration and Impact Perfor-mance:(The clock should run normally at following conditions)
1) Vibration: Frequency:80Hz,Acceleration:2g
2) Impact Acceleration:5g, Duration:30 minutes
10.Antimagnetic Performance:≥7oster
