Back to product Download PDF
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Fire Damper

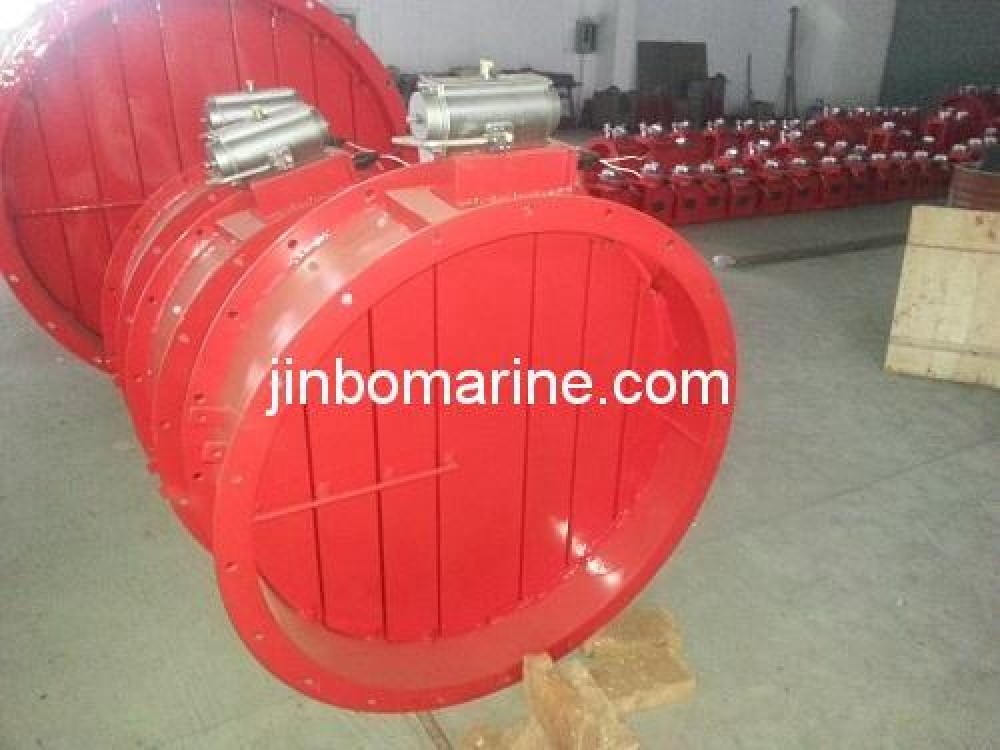

Marine Round Pneumatic Fire Damper

Fire Damper is intended for ventilation duct with fire requirement. When on fire, the temperature inside the duct reaches 70℃, fire damper will automatically close quickly to avoid fire spreading. According to the shape,...

ISO9001 Supplier Class Certificate Export Supply
Marine Round Pneumatic Fire Damper

Key Highlights

Category
Marine Fire Damper
Standard
DIN
Material
Steel, Stainless Steel
Weight / Size
Main Size List(mm):
Certificate
CCS,BV,ABS,DNV, GL, EC, LR
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Fire Damper
Model / SKU
Marine-Round-Pneumatic-Fire-Damper
Standard
DIN
Material
Steel, Stainless Steel
Weight / Size
Main Size List(mm):
Certificate
CCS,BV,ABS,DNV, GL, EC, LR
Warranty
12 Months unless specified otherwise
Origin
China

China Marine Round Pneumatic Fire Damper:

Fire Damper is intended for ventilation duct with fire requirement. When on fire, the temperature inside the duct reaches 70℃, fire damper will automatically close quickly to avoid fire spreading. According to the shape, there are rectangular & round type. According to the control way, there are manual, electrical, pneumatic type.The blade can be single blade or multi-blades. The fireproof class can reach A60.

Design Standard: CB/T3557-1995

Fireproof class: A0,A15,A30,A60

Main Parts:pneumatic actuator, temperature detector, damper body, damper plate, main shaft, flange.

Main Functions & Features:

1) When the fire damper is connected to the compressed air or power on,the damper is turned on.When the damper loses the air or power,it is turned off. Pneumatic working pressure 0.5-0.8Mpa;
2) When the temperature within the duct reaches 70 ± 3 ℃, the temperature fuse is blown, the reversing valve acts to cut off the air supply, close the damper;
3)The solenoid valve can be controlled remotely or nearby to turn on or off the power supply, thereby opening or closing the damper;
4) Under an emergency situation, the damper can be closed remotely or nearby with the dragging line on TG.

Main Size List(mm):

DN D D1 n L
80 135 116 4 320
100 155 136 6
125 180 161 6
150 205 186 6
175 230 211 8
200 255 236 8
250 305 286 12
300 355 336 12
350 405 386 12
400 455 436 16
450 510 492 16
500 560 542 20
600 660 642 20
700 760 742 24
800 860 842 28
900 960 942 28
1000 1060 1042 32
L can be decided by the customer.
