| SIZE | ΦA mm | C mm | D mm | F mm | W.L.L LBS |
| 5*50 | 5 | 50 | 5 | 9 | 100 |
| 6*60 | 6 | 60 | 6 | 10 | 140 |
| 8*80 | 8 | 80 | 10 | 13 | 250 |
| 10*100 | 10 | 100 | 13 | 18 | 400 |
| 11*120 | 11 | 120 | 13 | 24 | 500 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Yacht & Boat Accessory

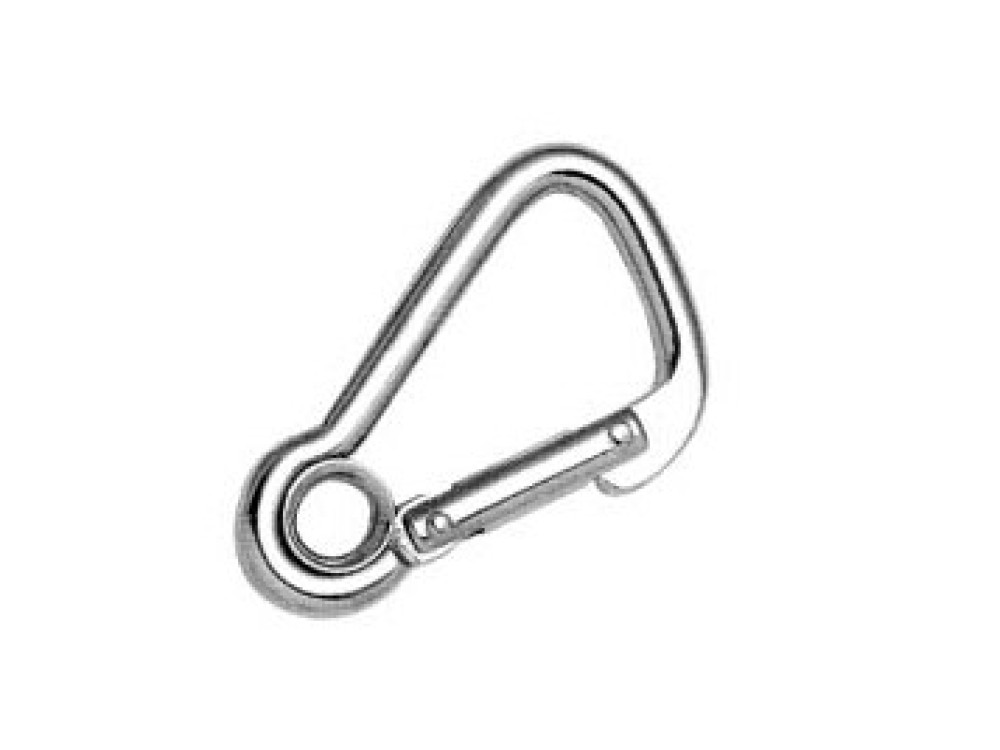

Oblique Angle Snap Hook With Eyelet And Rivets at Botch End, SS304 OR SS316, STE
SIZE ΦA mm C mm D mm F mm W.L.L LBS 5*50 5 50 5 9 ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Yacht & Boat Accessory
Standard
EN
Material
Stainless steel
Weight / Size
SIZE ΦA mm C mm D mm F mm W.L.L LBS 5*50 5 50 5 9 100 6*60 6 60 6 10 140...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Yacht & Boat Accessory
Model / SKU
OBLIQUE-ANGLE-SNAP-HOOK-WITH-EYELET-AND-RIVETS-AT-BOTCH-END-SS304-OR-SS316-STEEL-ELECTRIC-GALVANIZED
Standard
EN
Material
Stainless steel
Weight / Size
SIZE ΦA mm C mm D mm F mm W.L.L LBS 5*50 5 50 5 9 100 6*60 6 60 6 10 140 8*80 8 80 10 13 250 10*100 10 100 13 18 400 11*120 11 120 13 24 500
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
