Oil discharge Monitoring Equipment is designed to monitor and control any discharge of pollution into overboard the sea from any ships in accordance with the rule requirement of MARPOL 73/78 Annex I & II ,and MEPC.108(49)-2004

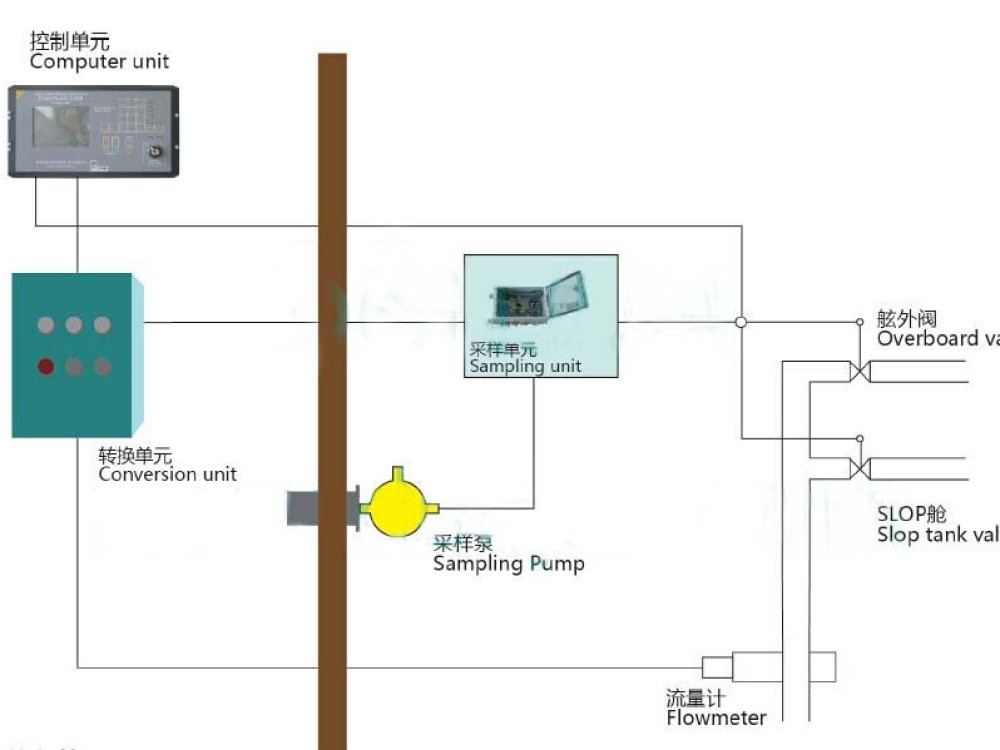

ODME consists of computer unit, analyze unit, sampling unit & sampling pump, pneumatic overboard valve & slop tank valve, flow meter etc.Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Conservation
Oil Discharge Monitoring Equipment
Description Oil discharge Monitoring Equipment is designed to monitor and control any discharge of pollution into overboard the sea from any ships in accordance with the rule requirement of MARPOL 73/78 Annex I...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Conservation
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Conservation
Model / SKU
Oil-Discharge-Monitoring-Equipment
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Description
System Parameter:
System power: AC220V/50Hz(+6% — -10%) DC24V(30% — -25%)
Measuring range :0-999PPm
Measuring accuracy : 10% F·S
Response time : ＜40s
Work environment conditions : humidity 80% ; temperature : 0-50℃
Measuring range :0-999PPm
Measuring accuracy : 10% F·S
Response time : ＜40s
Work environment conditions : humidity 80% ; temperature : 0-50℃
Supply content :
Overboard valve : 1 PC
Recycle valve : 1 PC
Recycle valve : 1 PC
