| Type | The appropriate diameter （mm） | Security load （kg） | The length of net sets (mm) |
| XTDL-10 | 6-10 | 250 | 350 |
| XTDL-15 | 10-15 | 300 | 380 |
| XTDL-20 | 15-20 | 350 | 400 |
| XTDL-25 | 20-25 | 400 | 500 |
| XTDL-35 | 25-35 | 500 | 800 |
| XTDL-45 | 35-45 | 800 | 1000 |
| XTDL-60 | 45-60 | 1200 | 1200 |
| XTDL-80 | 60-80 | 2000 | 1600 |
| XTDL-100 | 80-100 | 3000 | 1800 |
| XTDL-120 | 100-120 | 4000 | 2000 |
| XTDL-150 | 120-150 | 6000 | 2200 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Chain Sling

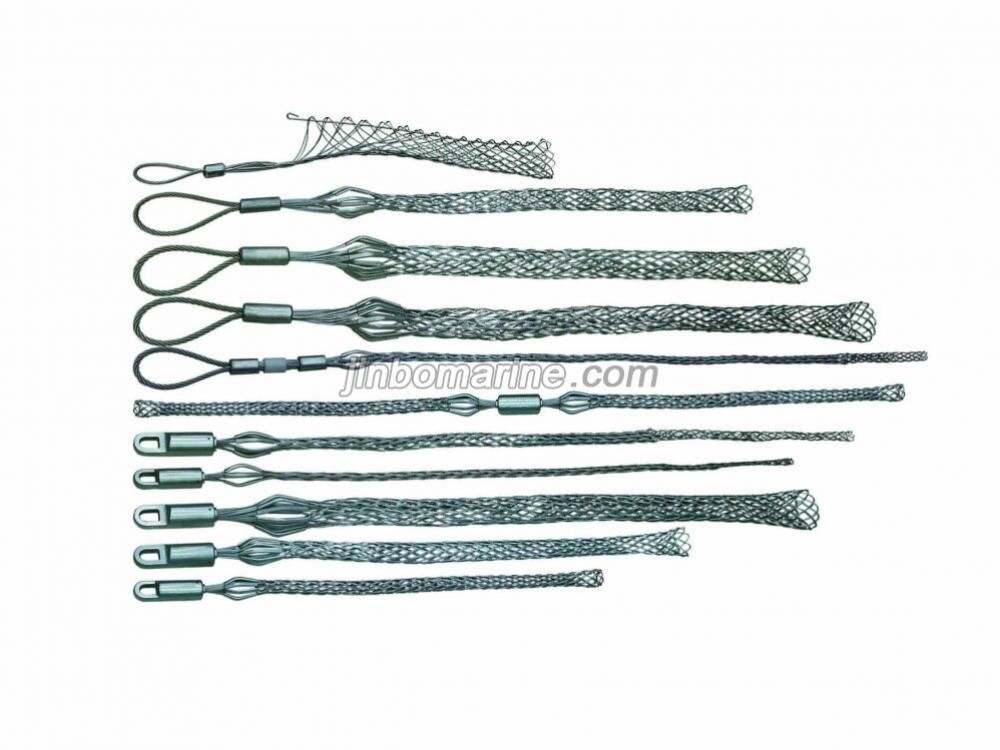

Ordinary Cable Net Connector
Type The appropriate diameter （mm） Security load （kg） The length of net sets (mm) XTDL-10 6-10 ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Chain Sling
Standard
DIN
Material
Galvanized Steel Wire Rope
Weight / Size
Type The appropriate diameter （mm） Security load （kg） The length of net ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Chain Sling
Model / SKU
Ordinary-Cable-Net-Connector
Standard
DIN
Material
Galvanized Steel Wire Rope
Weight / Size
Type The appropriate diameter （mm） Security load （kg） The length of net sets (mm) XTDL-10 6-10 250 350 XTDL-15 10-15 300 380 XTDL-20 15-20 350 400 XTDL-25 20-25 400 500 XTDL-35 25-35 500 800 XTDL-45 35-45 800 1000 XTDL-60 45-60 1200 1200 XTDL-80 60-80 2000 1600 XTDL-100 80-100 3000 1800 XTDL-120 100-120 4000 2000 XTDL-150 120-150 6000 2200
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
