Fire Hydrant

PN16 International Shore Connection

PN16 International Shore Connection The connection is fitted with a coupling to match the hose couplings on the ship. Outside diameter:178mm Inside diameter:64mm P.C.D:132mm Flange thickness...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Fire Hydrant
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

China PN16 International Shore Connection:

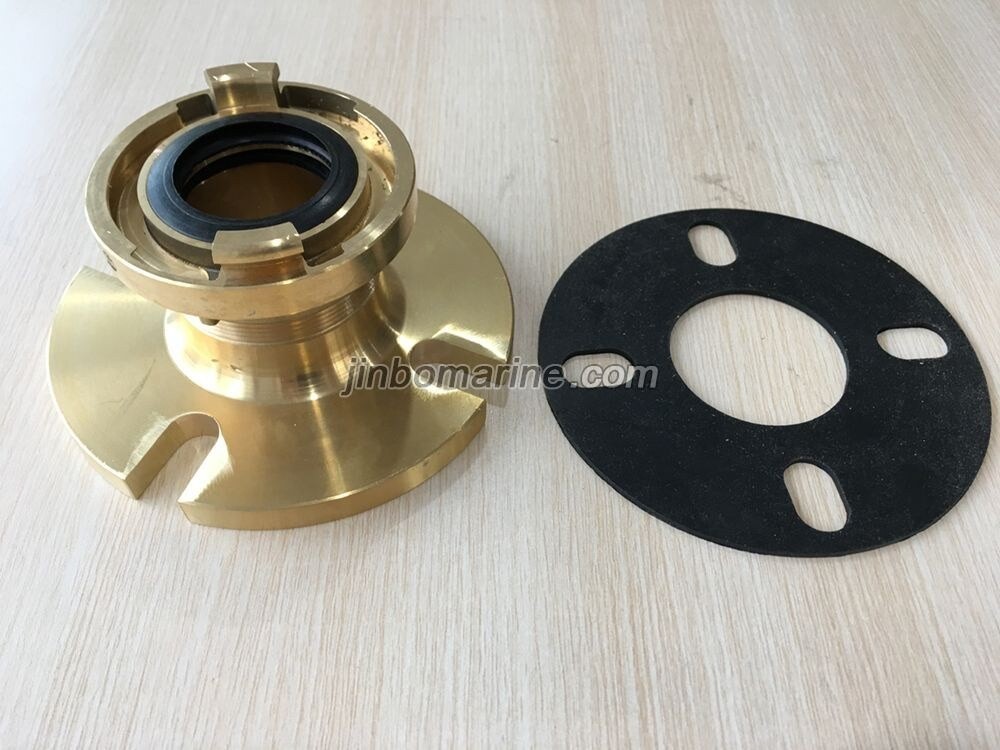

PN16 International Shore Connection

The connection is fitted with a coupling to match the hose couplings on the ship.

Outside diameter:178mm

Inside diameter:64mm

P.C.D:132mm

Flange thickness:14.5mm

Slots in flange: 19mm diameter x 4 holes.

Bolts and nuts:16mm diameter x 50mm lengthx 4pcs.

IMPA code: 330841
