Back to product Download PDF
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Tank Lid Packing

PTFE Tank Lid Packing IMPA 810723

PTFE Tank Lid Packing IMPA 810723 Structure Size:35mm*35mm Rubber Core + PTFE Film + Arcylic Yarn + Oiled White PTFE Yarn.Or according to your special request. Description Use the special h...

ISO9001 Supplier Class Certificate Export Supply

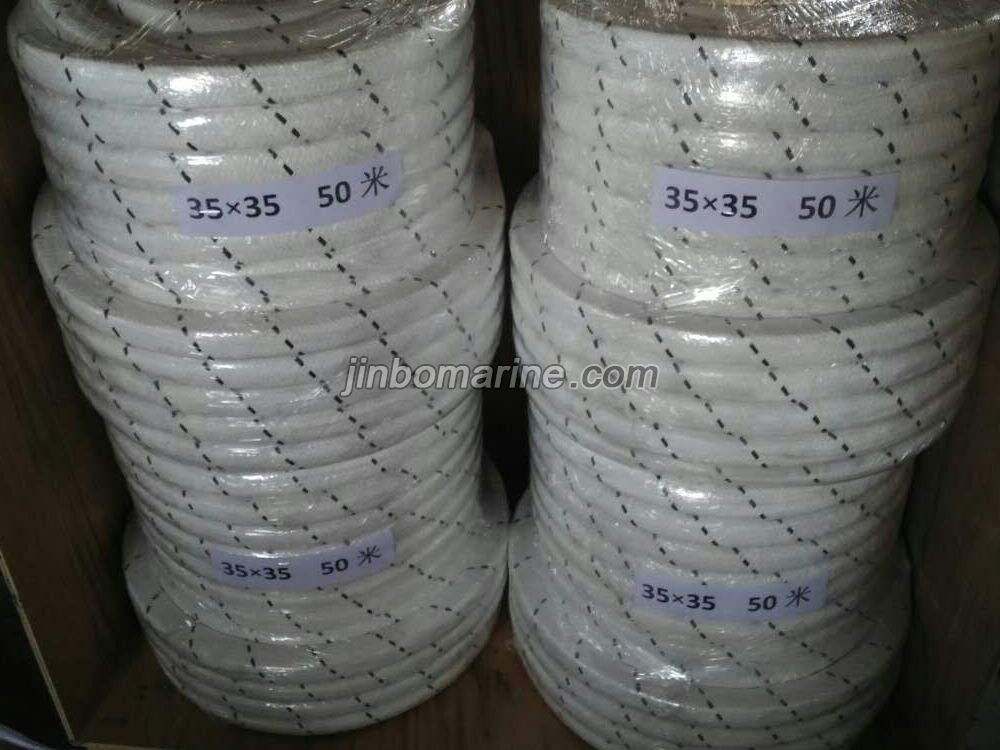

PTFE Tank Lid Packing IMPA 810723

Key Highlights

Category
Marine Tank Lid Packing
Standard
DIN
Material
And use the corrosion resisting materials as the outer layer.
Weight / Size
PTFE Tank Lid Packing IMPA 810723 Structure Size:35mm*35mm Rubber Core +...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Tank Lid Packing
Model / SKU
PTFE-Tank-Lid-Packing-IMPA-810723
Standard
DIN
Material
And use the corrosion resisting materials as the outer layer.
Weight / Size
PTFE Tank Lid Packing IMPA 810723 Structure Size:35mm*35mm Rubber Core + PTFE Film + Arcylic Yarn + Oiled White PTFE Yarn.Or according to your special request.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

PTFE Tank Lid Packing IMPA 810723

Structure

Size:35mm*35mm

Rubber Core + PTFE Film + Arcylic Yarn + Oiled White PTFE Yarn.Or according to your special request.

Description

Use the special high rebound resilience rubber as the inner core. Then wrapped by the high temperature resistant fiber. And use the corrosion resisting materials as the outer layer. This is a multi-functional special packing, applicable for seal of important locations of oils and chemicals tanks such as manhole, filling hole, protective hole etc.

PTFE Tank Lid Packing Technical Specifications

Square Section Rectangular Section
IMPA CODE Size (mm) IMPA CODE Size （mm）
810721 20×20 810726 20×15
810722 25×25 810727 30×20
810723 35×35 810728 35×25
810724 38×38 810729 40×30
810725 40×40
