Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Tank Lid Packing

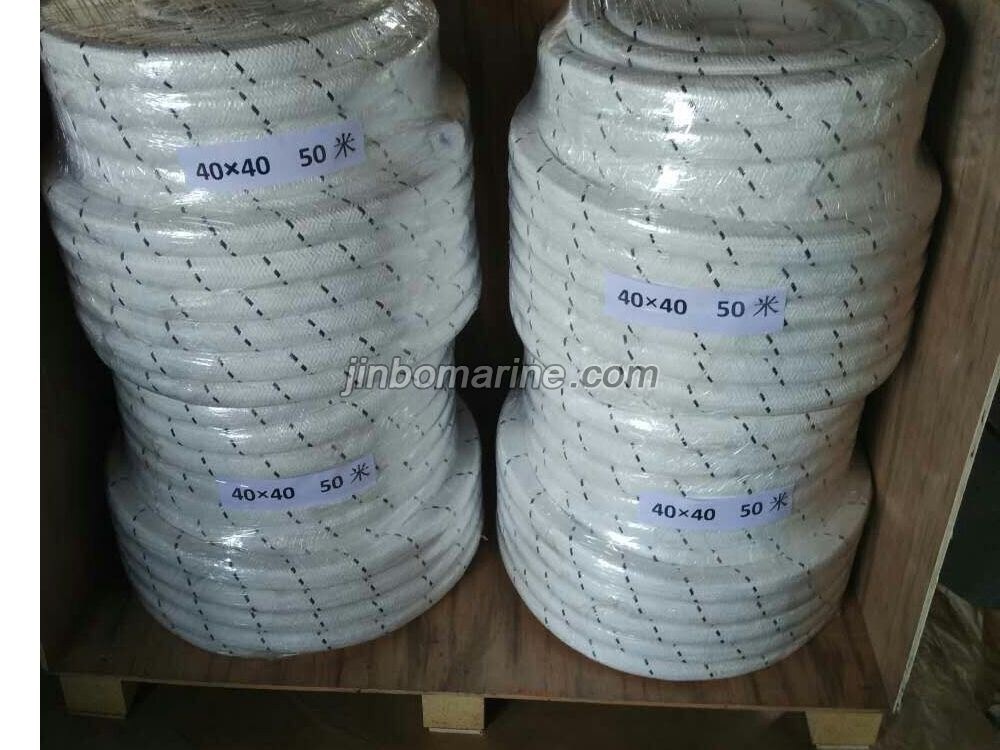

PTFE Tank Lid Packing IMPA 810725

PTFE Tank Lid Packing IMPA 810725 The tank lid packing is a hollow core of special rubber for maximum chemical resistance. Around it is a protective layer of PTFE tape which is surrounded by a thick ...

ISO9001 Supplier Class Certificate Export Supply
PTFE Tank Lid Packing IMPA 810725

Key Highlights

Category
Marine Tank Lid Packing
Standard
EN
Material
Around it is a protective layer of PTFE tape which is surrounded by a th...
Weight / Size
Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Tank Lid Packing
Model / SKU
PTFE-Tank-Lid-Packing-IMPA-810725
Standard
EN
Material
Around it is a protective layer of PTFE tape which is surrounded by a thick cushion of defibrillated polypropylene that has corners constructed from the same materials braided into cords.
Weight / Size
Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

PTFE Tank Lid Packing IMPA 810725

The tank lid packing is a hollow core of special rubber for maximum chemical resistance.

Around it is a protective layer of PTFE tape which is surrounded by a thick cushion of defibrillated polypropylene that has corners constructed from the same materials braided into cords.

Over the packing is a double layer of heavy-duty PTFE tape with a final outer protection of braided PTFE yarn.

Application: Static. Cargo or chemical tanks. Acids, alkalis, oils, solvents, chemicals, edible products.

Maximum temperature: 100°C.

Maximum pressure: 1 Bar.

PH: 1-14.

Size: 40x40mm.

PTFE Tank Lid Packing Technical Specifications

Square Section Rectangular Section
IMPA CODE Size (mm) IMPA CODE Size （mm）
810721 20×20 810726 20×15
810722 25×25 810727 30×20
810723 35×35 810728 35×25
810724 38×38 810729 40×30
810725 40×40
