Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Tank Lid Packing

PTFE Tank Lid Packing IMPA 810728

PTFE Tank Lid Packing IMPA 810728 Size:35x25mm A hollow core of chemical resistant rubber with a protective layer of PTFE tape, surrounded by a thick cushion of defibrillated polypropylene with corners constr...

ISO9001 Supplier Class Certificate Export Supply

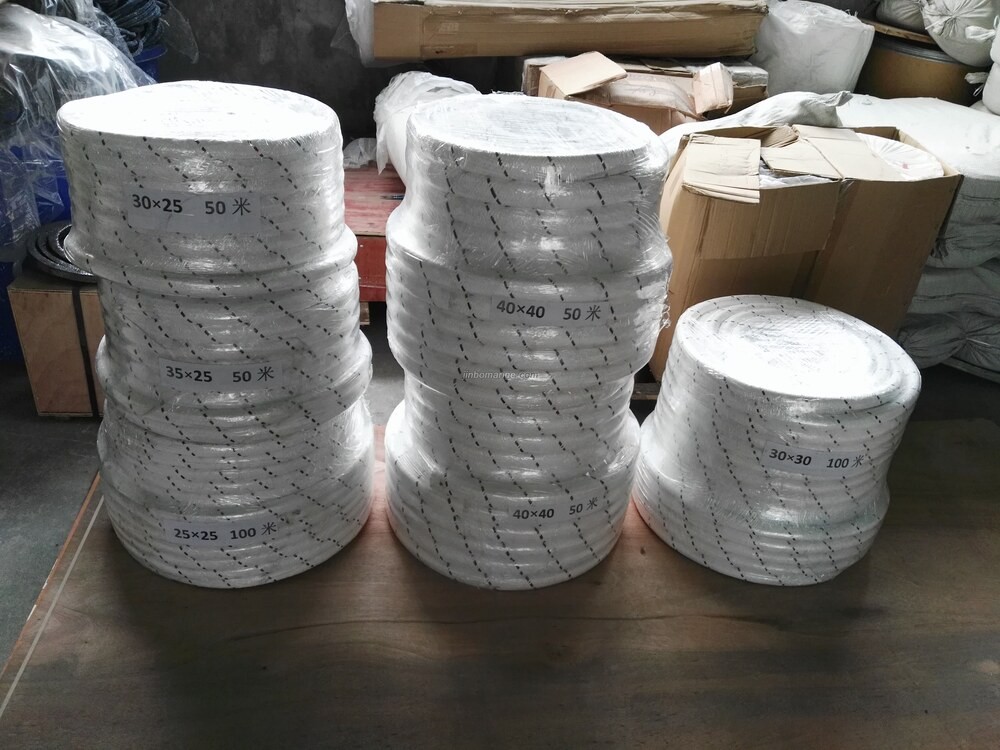

PTFE Tank Lid Packing IMPA 810728

Key Highlights

Category
Marine Tank Lid Packing
Standard
EN
Material
PTFE Tank Lid Packing IMPA 810728 Size:35x25mm A hollow core of chemical...
Weight / Size
PTFE Tank Lid Packing IMPA 810728 Size:35x25mm A hollow core of chemical...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Tank Lid Packing
Model / SKU
PTFE-Tank-Lid-Packing-IMPA-810728
Standard
EN
Material
PTFE Tank Lid Packing IMPA 810728 Size:35x25mm A hollow core of chemical resistant rubber with a protective layer of PTFE tape, surrounded by a thick cushion of defibrillated polypropylene with corners constructed of the same materials (braided into cords).
Weight / Size
PTFE Tank Lid Packing IMPA 810728 Size:35x25mm A hollow core of chemical resistant rubber with a protective layer of PTFE tape, surrounded by a thick cushion of defibrillated polypropylene with corners constructed of the same materials (braided into cords).
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

PTFE Tank Lid Packing IMPA 810728

Size:35x25mm

A hollow core of chemical resistant rubber with a protective layer of PTFE tape, surrounded by a thick cushion of defibrillated polypropylene with corners constructed of the same materials (braided into cords). Over the packing is a double layer of heavy-duty PTFE tape with a final outer protection of braided PTFE yarn.
Maximum temperature 100°C (210°F);
PH 0-14.
Resistant to acids, alkalis, oils, solvents, chemicals and edible products.
Available in 15mm to 50mm diameters, in coils (specify diameter and length) or ready-made rings (specify diameter and height)

PTFE Tank Lid Packing Technical Specifications

Square Section Rectangular Section
IMPA CODE Size (mm) IMPA CODE Size （mm）
810721 20×20 810726 20×15
810722 25×25 810727 30×20
810723 35×35 810728 35×25
810724 38×38 810729 40×30
810725 40×40
