Marine Tank Lid Packing
PTFE Tank Lid Packing IMPA 810729
PTFE Tank Lid Packing IMPA 810729 Use the special high rebound resilience rubber as the inner core. Then wrapped by the high temperature resistant fiber. And use the corrosion resisting materials as the outer lay...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Tank Lid Packing
Standard
DIN
Material
And use the corrosion resisting materials as the outer layer.
Weight / Size
Structure Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Tank Lid Packing
Model / SKU
PTFE-Tank-Lid-Packing-IMPA-810729
Standard
DIN
Material
And use the corrosion resisting materials as the outer layer.
Weight / Size
Structure Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

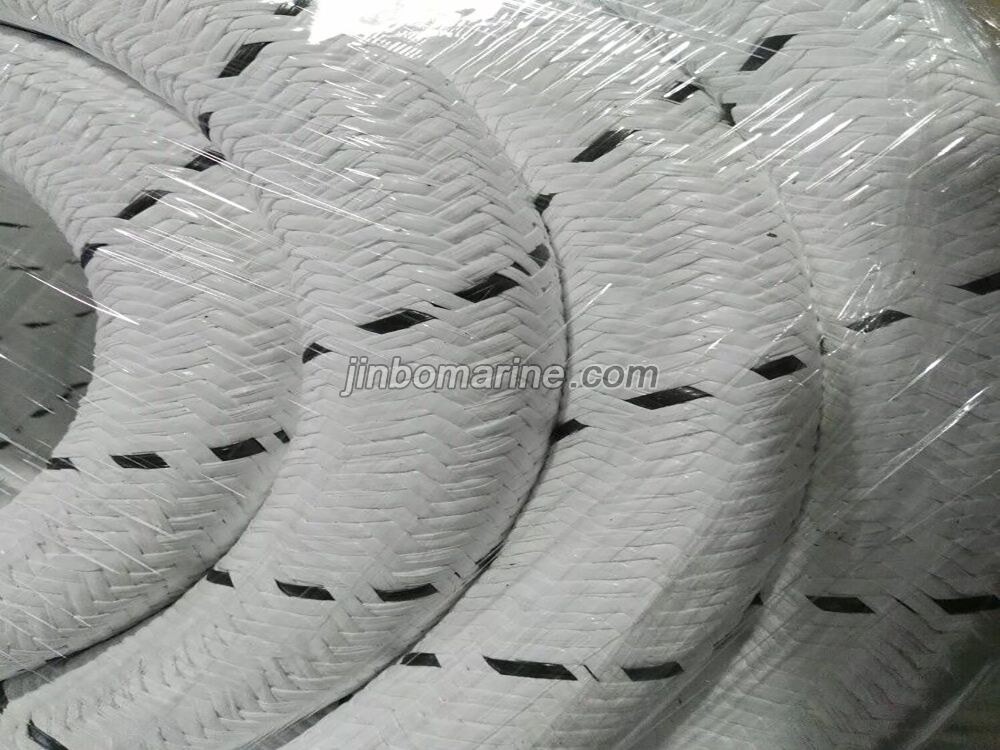

PTFE Tank Lid Packing IMPA 810729
Structure
Size: 40mm*30mm
Rubber Core + PTFE Film + Arcylic Yarn + Oiled White PTFE Yarn.Or according to your special request.
Description
It is made of elastic inner core cover with high temperature resistant and corrosion resistant fiber. This is a multifunctional special packing, applicable for seal of important locations of oils and chemical tanks such as manhole, filling hole, protective hole.
PTFE Tank Lid Packing Technical Specifications
| Square Section | Rectangular Section | ||
| IMPA CODE | Size (mm) | IMPA CODE | Size （mm） |
| 810721 | 20×20 | 810726 | 20×15 |
| 810722 | 25×25 | 810727 | 30×20 |
| 810723 | 35×35 | 810728 | 35×25 |
| 810724 | 38×38 | 810729 | 40×30 |
| 810725 | 40×40 | ||
